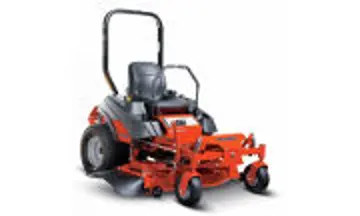

Simplicity Champion XT 25/48
The Simplicity Champion XT 25/48 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The listed engine power is Engine Detail — 724 cc / 44.18 ci (listed): 25 hp / 18.6 kW. Transmission: Hydro-Gear ZT-3400. Operating weight: 920 lbs 417 kg.
Engine Power
Engine Detail — 724 cc / 44.18 ci (listed): 25 hp / 18.6 kW
Fuel & Capacities
5.5 gal
20.8 L
Transmission
Hydro-Gear ZT-3400
Operating Weight
920 lbs
417 kg
Overview
 | 2014 -
Champion SeriesZero-turn mower |
|---|---|
2014 - | |
Champion Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Champion Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Simplicity (a part of Briggs & Stratton) |
Zero-turn mower | |
Original price was $5,800 in 2018 | |
Simplicity Champion XT 25/48 Engine | |
|---|---|
25HP Briggs & Stratton 724cc 2-cyl | |
Fuel tank | 5.5 gal
20.8 L |
Engine details ...  | |
Simplicity Champion XT 25/48 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-post ROPS. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 920 lbs
417 kg |
Front tire | 11x4 |
Rear tire | 22x11 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 350 |
Battery volts | 12 |
Engine
| 2014 -
Champion SeriesZero-turn mower |
|---|---|
2014 - | |
Champion Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Champion Series | |
Zero-turn mower |
Engine Detail — 724 cc / 44.18 ci
Manufacturer | Briggs & Stratton 44T977 |
Configuration | 2-cylinder |
vertical-shaft V-Twin | |
Displacement | 724 cc
44.18 ci |
Bore/Stroke | 3.12x2.89 inches
79 x 73 mm |
Power | 25 hp
18.6 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2014 -
Champion SeriesZero-turn mower |
|---|---|
2014 - | |
Champion Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Champion Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT-3400
Transmission | Hydro-Gear ZT-3400 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2014 -
Champion SeriesZero-turn mower |
|---|---|
2014 - | |
Champion Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Champion Series | |
Zero-turn mower |
Simplicity Champion XT 25/48 Tires | |
|---|---|
Lawn/turf front | 11x4 |
Lawn/turf rear | 22x11 |
Dimensions | |
|---|---|
Length | 78 inches
198 cm |
Height | 64.5 inches
163 cm |
Weight | 920 lbs
417 kg |
Attachments
| 2014 -
Champion SeriesZero-turn mower |
|---|---|
2014 - | |
Champion Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Champion Series | |
Zero-turn mower |
48" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
3-blade with manual lift | |
Cutting width | 48 inches
121 cm |
Overall width | 59 inches
149 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Cut positions | 14 |
Photos

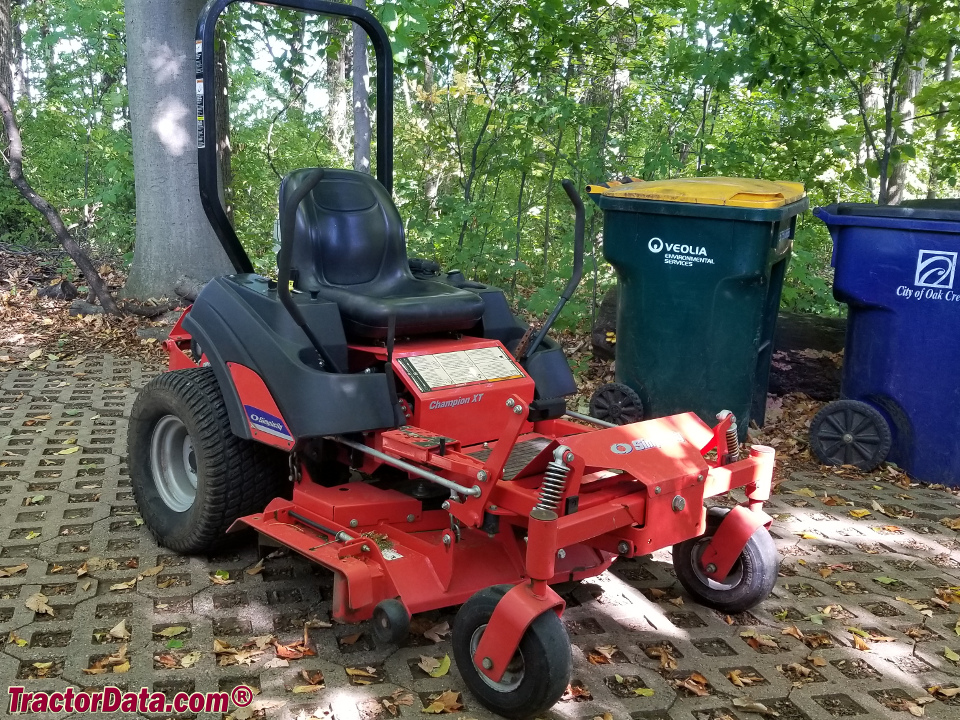

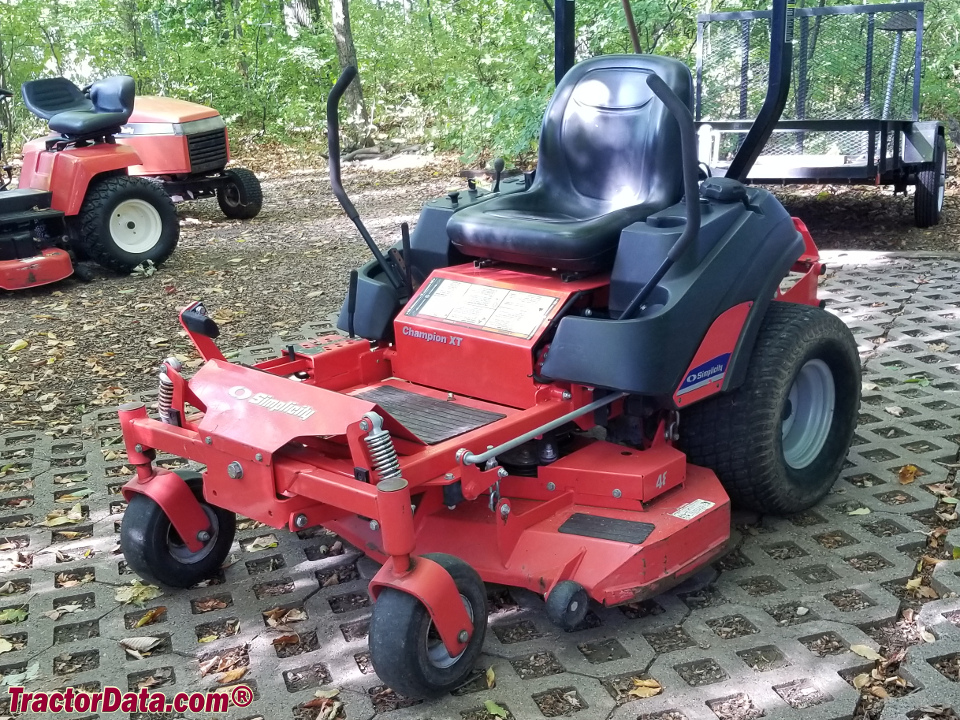

Simplicity Champion XT 25/48
Simplicity Champion XT 25/48
Simplicity Lawn Tractors Simplicity Champion XT 25/48 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Champion XT 25/48.
Converted Equivalents:
Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS
