Simplicity Citation 22/52

The Simplicity Citation 22/52 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Hydro-Gear. Operating weight: 1063 lbs 482 kg.

Overview

	2012 Citation SeriesZero-turn mower Citation Series Zero-turn mower

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Zero-turn mower
Original price was $7,500 in 2012

Simplicity Citation 22/52 Engine
22HP Kawasaki 726cc 2-cyl gasoline
Fuel tank	5.5 gal 20.8 L
Engine details ...

Simplicity Citation 22/52 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-post folding ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	1063 lbs 482 kg
Front tire	13x5.00-10
Rear tire	22x11.00-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	340
Battery volts	12

Engine

Engine Detail — 726 cc / 44.3 ci Gasoline

Manufacturer	Kawasaki FS691V
Fuel Type	Gasoline
Configuration	2-cylinder
Displacement	726 cc 44.3 ci
Power (gross)	22 hp 16.4 kW
Starter	electric
Starter volts	12
Oil capacity	2.2 qts 2.1 L

Transmission

Transmission — Hydro-Gear

Transmission	Hydro-Gear
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Citation 22/52 Tires
Lawn/turf front	13x5.00-10
Lawn/turf rear	22x11.00-10

Dimensions
Wheelbase	48 inches 121 cm
Length	79.5 inches 201 cm
Height (ROPS)	70 inches 177 cm
Weight	1063 lbs 482 kg

Attachments

52" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	52 inches 132 cm
Overall width	64 inches 162 cm
Cut height	1.75 to 5 inch 4 to 12 cm
Cut positions	14

Photos

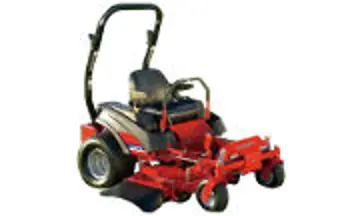

Simplicity Citation 22/52 tractor photo
