Simplicity Broadmoor 18/38

The Simplicity Broadmoor 18/38 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 568 cc 34.7 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: Tuff Torq K57. Operating weight: 100 lbs 45 kg.

Overview

	2005 - 2009 Broadmoor SeriesLawn tractor Broadmoor Series Lawn tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Lawn tractor
Original price was $4,300 in 2009

Simplicity Broadmoor 18/38 Engine
18HP Vanguard 568cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Broadmoor 18/38 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station with 15-inch adjustable seat.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	470 lbs 213 kg
Front tire	15x6.0-6
Rear tire	22x10.0-10
Full dimensions and tires ...

Electrical
Charging amps	16
Battery CCA	230
Battery volts	12

References
Operator's Manual Broadmoor / 300 / 1600 / 2600 Series (1732286) published in 2008
The Way To A Beautiful Lawn published in 2005, by Simplicity
Product Guide 2008 published by Simplicity

Engine

Engine Detail — 568 cc / 34.7 ci Gasoline

Manufacturer	Vanguard 356777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	568 cc 34.7 ci
Bore/Stroke	2.83x2.76 inches 72 x 70 mm
Power (gross)	18 hp 13.4 kW
Starter	electric
Starter volts	12

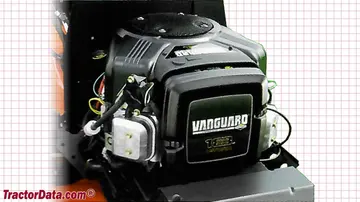

Simplicity Broadmoor 18/38 Engine

Transmission

Transmission — Tuff Torq K57

Transmission	Tuff Torq K57
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Broadmoor 18/38 Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	22x10.0-10

Dimensions
Wheelbase	53 inches 134 cm
Length	71 inches 180 cm
Width	37 inches 93 cm
Height	43 inches 109 cm
Weight	470 lbs 213 kg
Front axle	Cast-iron
Rear axle	0.75 inch diameter 19 mm

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Simplicity 1695404
	2-blade with manual lift
Cutting width	38 inches 96 cm
Weight	100 lbs 45 kg
Overall width	50 inches 127 cm
Cut height	1 to 3.75 inch 2 to 9 cm
Cut positions	infinite

Photos

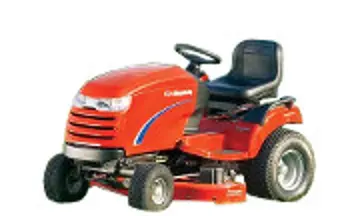

Simplicity Broadmoor 18/38 tractor photo
