Simplicity Baron 18H

The Simplicity Baron 18H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: Tuff Torq K-51.

Overview

	2000 - 2002 Rear-discharge mower

Production
Manufacturer	Simplicity
Rear-discharge mower
Built in Port Washington, Wisconsin, USA
Original price was $4,800 in 2000

Simplicity Baron 18H Engine
18HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Simplicity Baron 18H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	51 inches 129 cm
Front tire	15x6.0-6
Rear tire	18x8.5-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
The way to a beautiful lawn. published in 2000, by Simplicity
Product Guide 2000 published by Simplicity
Product Guide Fall 2001 published by Simplicity

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer	Briggs & Stratton 405777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	655 cc 40 ci
Bore/Stroke	2.97x2.89 inches 75 x 73 mm
Power (gross)	18 hp 13.4 kW
Rated RPM	3400
Starter	electric
Starter volts	12

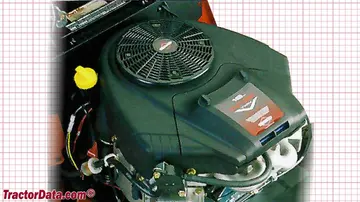

Simplicity Baron 18H Engine

Transmission

Transmission — Tuff Torq K-51

Transmission	Tuff Torq K-51
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Baron 18H Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	18x8.5-8

Dimensions
Wheelbase	51 inches 129 cm
Length	97 inches 246 cm
Width	36 inches 91 cm
Height	43 inches 109 cm

Attachments

40" Mower deck
Type	mid-mount Simplicity
	2-blade
Cutting width	40 inches 101 cm

Photos

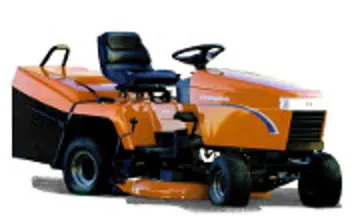

Simplicity Baron 18H tractor photo
