Simplicity 7018

The Simplicity 7018 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 588 cc 35.89 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 775 lbs 351 kg.

Overview

	1979 7000 SeriesGarden tractor 7000 Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor

Simplicity 7018 Engine
18HP Kohler 588cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity 7018 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Open operator station.

Dimensions & Tires
Wheelbase	48.1 inches 122 cm
Weight	775 lbs 351 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 588 cc / 35.89 ci Gasoline

Manufacturer	Kohler K361
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	588 cc 35.89 ci
Bore/Stroke	3.75x3.25 inches 95 x 83 mm
Power (gross)	18 hp 13.4 kW
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Sparkplug	Champion H-10
	Autolite AK7B
Sparkplug gap	0.035 inches 0.889 mm
Point gap	0.020 inches 0.508 mm

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3 qts 2.8 L
Oil type	ATF F

	ATF F

Dimensions

Simplicity 7018 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	48.1 inches 122 cm
Length	67 inches 170 cm
Width	37.5 inches 95 cm
Height (steering wheel)	39.5 inches 100 cm
Weight	775 lbs 351 kg

Photos

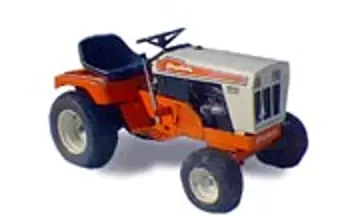

Simplicity 7018
