Simplicity Citation 28/61

The Simplicity Citation 28/61 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 809 cc 49.42 ci engine. The listed engine power is Gasoline (gross): 28 hp / 20.9 kW; Gasoline (gross): 28 hp / 20.9 kW. Transmission: Hydro-Gear. Operating weight: 1097 lbs 497 kg.

Overview

	2010 - 2012 Citation SeriesZero-turn mower Citation Series Zero-turn mower

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Zero-turn mower
Original price was $8,300 in 2010

Simplicity Citation 28/61 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-post folding ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	1097 lbs 497 kg
Front tire	13x5.00-6
Rear tire	22x11.00-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	340
Battery volts	12

Engine

Engine options
28HP Vanguard 899cc 2-cyl gasoline
28HP Briggs & Stratton 809cc 2-cyl gasoline

Engine Detail — 899 cc / 54.88 ci Gasoline

Manufacturer	Vanguard 541777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
The Vanguard engine was used on the Citation 28/61 for the 2010 and 2011 model years.
Displacement	899 cc 54.88 ci
Bore/Stroke	3.42x3.12 inches 87 x 79 mm
Power (gross)	28 hp 20.9 kW
Starter	electric
Starter volts	12

Engine Detail — 809 cc / 49.42 ci Gasoline

Manufacturer	Briggs & Stratton 49L977
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
The Briggs Commercial engine was used for the 2012 model year.
Displacement	809 cc 49.42 ci
Bore/Stroke	3.30x2.89 inches 84 x 73 mm
Power (gross)	28 hp 20.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear

Transmission	Hydro-Gear
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Citation 28/61 Tires
Lawn/turf front	13x5.00-6
Lawn/turf rear	22x11.00-10

Dimensions
Wheelbase	48 inches 121 cm
Length	79.5 inches 201 cm
Height (ROPS)	70 inches 177 cm
Weight	1097 lbs 497 kg

Attachments

61" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	61 inches 154 cm
Overall width	76 inches 193 cm
Cut height	1.75 to 5 inch 4 to 12 cm
Cut positions	14

Photos

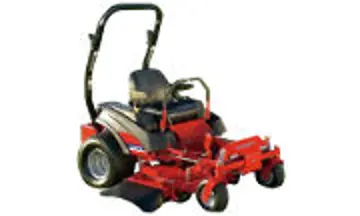

Simplicity Citation 28/61 tractor photo
