Simplicity Citation XT 27/61
The Simplicity Citation XT 27/61 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 810 cc 49.43 ci engine. The listed engine power is Engine Detail — 810 cc / 49.43 ci (listed): 27 hp / 20.1 kW. Transmission: Hydro-Gear ZT-3400. Operating weight: 1130 lbs 512 kg.
Engine Power
Engine Detail — 810 cc / 49.43 ci (listed): 27 hp / 20.1 kW
Fuel & Capacities
5.5 gal
20.8 L
Transmission
Hydro-Gear ZT-3400
Operating Weight
1130 lbs
512 kg
Overview
 | 2014 -
Citation SeriesZero-turn mower |
|---|---|
2014 - | |
Citation Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Citation Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Simplicity (a part of Briggs & Stratton) |
Zero-turn mower | |
Original price was $6,800 in 2018 | |
Simplicity Citation XT 27/61 Engine | |
|---|---|
27HP Briggs & Stratton 810cc 2-cyl | |
Fuel tank | 5.5 gal
20.8 L |
Engine details ...  | |
Simplicity Citation XT 27/61 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-post folding ROPS. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 1130 lbs
512 kg |
Front tire | 13x5-6 |
Rear tire | 22x11-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 16 |
Battery CCA | 350 |
Battery volts | 12 |
Engine
| 2014 -
Citation SeriesZero-turn mower |
|---|---|
2014 - | |
Citation Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Citation Series | |
Zero-turn mower |
Engine Detail — 810 cc / 49.43 ci
Manufacturer | Briggs & Stratton 49T877 |
Configuration | 2-cylinder |
vertical-shaft V-Twin | |
Displacement | 810 cc
49.43 ci |
Bore/Stroke | 3.30x2.90 inches
84 x 74 mm |
Power | 27 hp
20.1 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2014 -
Citation SeriesZero-turn mower |
|---|---|
2014 - | |
Citation Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Citation Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT-3400
Transmission | Hydro-Gear ZT-3400 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2014 -
Citation SeriesZero-turn mower |
|---|---|
2014 - | |
Citation Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Citation Series | |
Zero-turn mower |
Simplicity Citation XT 27/61 Tires | |
|---|---|
Lawn/turf front | 13x5-6 |
Lawn/turf rear | 22x11-10 |
Dimensions | |
|---|---|
Length | 81 inches
205 cm |
Height (ROPS) | 68 inches
172 cm |
Weight | 1130 lbs
512 kg |
Attachments
| 2014 -
Citation SeriesZero-turn mower |
|---|---|
2014 - | |
Citation Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Citation Series | |
Zero-turn mower |
61" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
3-blade with manual lift | |
Cutting width | 61 inches
154 cm |
Overall width | 75.75 inches
192 cm |
Cut height | 1.5 to 5 inch
3 to 12 cm |
Cut positions | 14 |
Photos

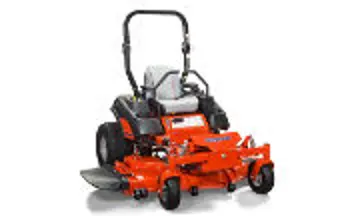

Simplicity Citation XT 27/61 tractor photo
Simplicity Lawn Tractors Simplicity Citation XT 27/61 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Citation XT 27/61.
Converted Equivalents:
Horsepower (HP)27 hp
Kilowatts (kW)20.1 kW
Metric Horsepower (PS / CV)27.4 PS
