Simplicity Conquest 22H

The Simplicity Conquest 22H is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Tuff Torq K66. Operating weight: 711 lbs 322 kg.

Overview

	2005 Conquest SeriesGarden tractor Conquest Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Original price was $5,125 in 2005

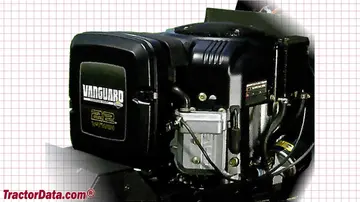

Simplicity Conquest 22H Engine
22HP Briggs & Stratton 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Conquest 22H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Front PTO Type	electric

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	711 lbs 322 kg
Front tire	16x6.5-8
Rear tire	23x10.5-12
Full dimensions and tires ...

References
The Way To A Beautiful Lawn published in 2005, by Simplicity

Engine

Engine Detail — Gasoline

Manufacturer	Briggs & Stratton Vanguard
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Power (gross)	22 hp 16.4 kW
Starter	electric
Starter volts	12

Simplicity Conquest 22H Engine

Transmission

Transmission — Tuff Torq K66

Transmission	Tuff Torq K66
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Conquest 22H Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	53 inches 134 cm
Length	75 inches 190 cm
Width	39 inches 99 cm
Height	47 inches 119 cm
Weight	711 lbs 322 kg
Front axle	Cast-iron

Attachments

Attachment overview
50" mid-mount mower deck
54" mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

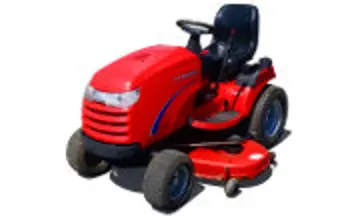

Simplicity Conquest 22H

Simplicity Conquest 22H

Simplicity Conquest 22H

Simplicity Conquest 22H

Simplicity Conquest 22H

Simplicity Conquest 22H

Simplicity Conquest 22 operator station and controls.
