Simplicity Citation XT 28/61

The Simplicity Citation XT 28/61 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Engine 1 (listed): 28 hp / 20.9 kW. Transmission: Hydro-Gear ZT-3400.

Overview

	2013 Citation SeriesZero-turn mower Citation Series Zero-turn mower

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Zero-turn mower

Simplicity Citation XT 28/61 Engine
28HP Briggs & Stratton 2-cyl
Fuel tank	6.5 gal 24.6 L
Engine details ...

Simplicity Citation XT 28/61 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-post folding ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Front tire	13x5
Rear tire	22x11
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	340
Battery volts	12

Engine

Manufacturer	Briggs & Stratton
Configuration	2-cylinder
Power	28 hp 20.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear ZT-3400

Transmission	Hydro-Gear ZT-3400
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Citation XT 28/61 Tires
Lawn/turf front	13x5
Lawn/turf rear	22x11

Dimensions
Length	79 inches 200 cm
Height (ROPS)	70 inches 177 cm

Attachments

61" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	61 inches 154 cm
Cut height	1.5 to 5 inch 3 to 12 cm
Cut positions	14

Photos

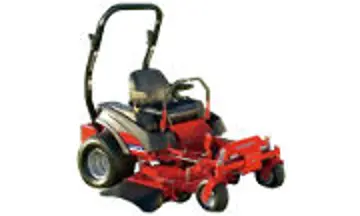

Simplicity Citation XT 28/61 tractor photo
