Simplicity Cobalt 28/61
The Simplicity Cobalt 28/61 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 809 cc 49.42 ci engine. The listed engine power is Engine Detail — 809 cc / 49.42 ci (listed): 28 hp / 20.9 kW. Transmission: Hydro-Gear ZT-4400. Operating weight: 1295 lbs 587 kg.
Engine Power
Engine Detail — 809 cc / 49.42 ci (listed): 28 hp / 20.9 kW
Fuel & Capacities
11 gal
41.6 L
Transmission
Hydro-Gear ZT-4400
Operating Weight
1295 lbs
587 kg
Overview
 | 2016 -
Cobalt SeriesZero-turn mower |
|---|---|
2016 - | |
Cobalt Series | |
Zero-turn mower | |
2016 - | |
|---|---|
Cobalt Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Simplicity (a part of Briggs & Stratton) |
Zero-turn mower | |
Original price was $9,700 in 2017 | |
Simplicity Cobalt 28/61 Engine | |
|---|---|
28HP Briggs & Stratton 809cc 2-cyl | |
Fuel tank | 11 gal
41.6 L |
Engine details ...  | |
Simplicity Cobalt 28/61 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-post folding ROPS. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 55 inches
139 cm |
Weight | 1295 lbs
587 kg |
Front tire | 13x6.5-6 |
Rear tire | 24x12-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 20 |
Battery CCA | 350 |
Battery volts | 12 |
Engine
| 2016 -
Cobalt SeriesZero-turn mower |
|---|---|
2016 - | |
Cobalt Series | |
Zero-turn mower | |
2016 - | |
|---|---|
Cobalt Series | |
Zero-turn mower |
Engine Detail — 809 cc / 49.42 ci
Manufacturer | Briggs & Stratton 49E877 |
Configuration | 2-cylinder |
vertical-shaft V-Twin | |
Displacement | 809 cc
49.42 ci |
Bore/Stroke | 3.30x2.89 inches
84 x 73 mm |
Power | 28 hp
20.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2016 -
Cobalt SeriesZero-turn mower |
|---|---|
2016 - | |
Cobalt Series | |
Zero-turn mower | |
2016 - | |
|---|---|
Cobalt Series | |
Zero-turn mower |
Transmission — Hydro-Gear ZT-4400
Transmission | Hydro-Gear ZT-4400 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2016 -
Cobalt SeriesZero-turn mower |
|---|---|
2016 - | |
Cobalt Series | |
Zero-turn mower | |
2016 - | |
|---|---|
Cobalt Series | |
Zero-turn mower |
Simplicity Cobalt 28/61 Tires | |
|---|---|
Lawn/turf front | 13x6.5-6 |
Lawn/turf rear | 24x12-12 |
Dimensions | |
|---|---|
Wheelbase | 55 inches
139 cm |
Length | 82.5 inches
209 cm |
Height (ROPS) | 72 inches
182 cm |
Weight | 1295 lbs
587 kg |
Attachments
| 2016 -
Cobalt SeriesZero-turn mower |
|---|---|
2016 - | |
Cobalt Series | |
Zero-turn mower | |
2016 - | |
|---|---|
Cobalt Series | |
Zero-turn mower |
61" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
3-blade with manual lift | |
Cutting width | 61 inches
154 cm |
Overall width | 78 inches
198 cm |
Cut height | 1.5 to 5 inch
3 to 12 cm |
Cut positions | 16 |
Photos

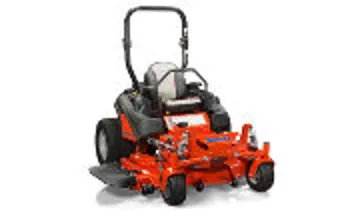

Simplicity Cobalt 28/61 tractor photo
Simplicity Lawn Tractors Simplicity Cobalt 28/61 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Cobalt 28/61.
Converted Equivalents:
Horsepower (HP)28 hp
Kilowatts (kW)20.9 kW
Metric Horsepower (PS / CV)28.4 PS
