Simplicity Conquest 16H

The Simplicity Conquest 16H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Tuff Torq K66. Operating weight: 586 lbs*Weight of tractor alone. 265 kg.

Overview

	2002 - 2003 Conquest SeriesGarden tractor Conquest Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Original price was $4,399 in 2003

Variants
2716H	similar Massey Ferguson model
1716H	similar AGCO model

Simplicity Conquest 16H Engine
16HP Briggs & Stratton 480cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Conquest 16H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	586 lbs 265 kg
Front tire	16x6.5-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Charging amps	16
Battery CCA	340
Battery volts	12

References
The Way To A Beautiful Lawn published in 2003, by Simplicity
Product Guide 2003 published by Simplicity

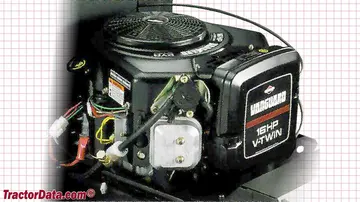

Engine

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Briggs & Stratton Vanguard
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	480 cc 29.3 ci
Bore/Stroke	2.68x2.60 inches 68 x 66 mm
Power (gross)	16 hp 11.9 kW
Air cleaner	dual dry element
Starter	electric
Starter volts	12
Oil capacity	1.75 qts 1.7 L

Simplicity Conquest 16H Engine

Transmission

Transmission — Tuff Torq K66

Transmission	Tuff Torq K66
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.6 qts 2.5 L

Dimensions

Simplicity Conquest 16H Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	53 inches 134 cm
Length	75 inches 190 cm
Width	39 inches 99 cm
Height	47 inches 119 cm
Weight	586 lbs*Weight of tractor alone. 265 kg
Max rear axle	697 lbs 316 kg
Front axle	Cast-iron

Attachments

Attachment overview
44" mid-mount mower deck
50" mid-mount mower deck
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

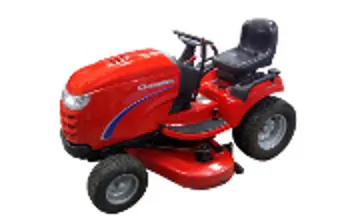

Simplicity Conquest 16H tractor photo
