Simplicity Landlord 16

The Simplicity Landlord 16 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Tuff Torq K210-A. Operating weight: 670 lbs 303 kg.

Overview

	1992 - 1998 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price	$5,250 (1993 hydro )
	$4,500 (1994 gear )
	$5,350 (1994 hydro )

Variants
1716	similar AGCO model

Simplicity Landlord 16 Engine
16HP Vanguard 480cc 2-cyl gasoline
Fuel tank	4 gal (early) 15.1 L
	5 gal (late) 18.9 L
Engine details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electro-magnetic

Dimensions & Tires
Wheelbase	51.5 inches 130 cm
Weight	670 lbs 303 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	16
Battery CCA	340
Battery volts	12

References
Tractors & Riding Mowers published in 1994, by Simplicity
Tractors & Riding Mowers published in 1995, by Simplicity
Tractors & Riding Mowers published in 1996, by Simplicity
Lawn & Garden Equipment published in 1998, by Simplicity
1993 Price List published in 1992, by Simplicity
1994 Price List published in 1993, by Simplicity
1996 Dealer Prduct Guide published by Simplicity
1997 Spring Product Guide published in 1996, by Simplicity

Engine

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Vanguard 303777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	480 cc 29.3 ci
Bore/Stroke	2.68x2.60 inches 68 x 66 mm
Power (gross)	16 hp 11.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission options
hydrostatic
6-speed gear

Transmission — Tuff Torq K215-A

Transmission	Tuff Torq K215-A
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.8 qts 2.6 L

Transmission — Tuff Torq K210-A

Transmission	Tuff Torq K210-A
Type	belt-driven gear
Gears	6 forward and 1 reverse
Oil capacity	3.875 qts 3.7 L
The Landlord 16G became available in 1994 when it replaced the 14G.

Dimensions

Simplicity Landlord 16 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	51.5 inches 130 cm
Length	72 inches 182 cm
Width	39 inches 99 cm
Height (steering wheel)	42.5 inches 107 cm
Height (hood)	36 inches 91 cm
Shipping weight	670 lbs 303 kg

Attachments

Attachment overview
44" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

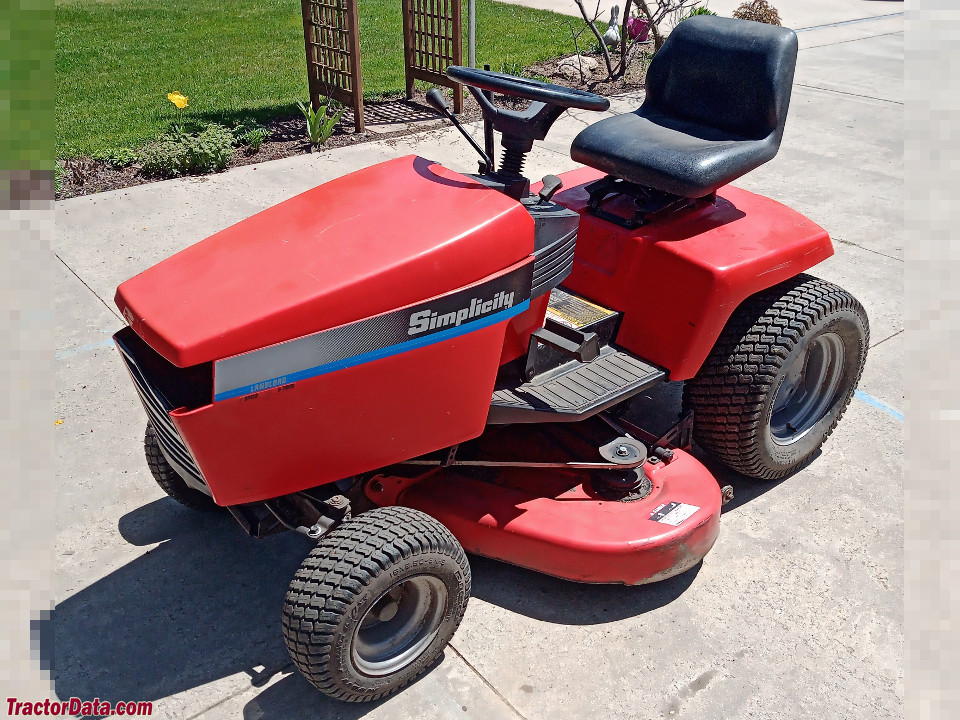

Simplicity Landlord 16

Simplicity Landlord 16

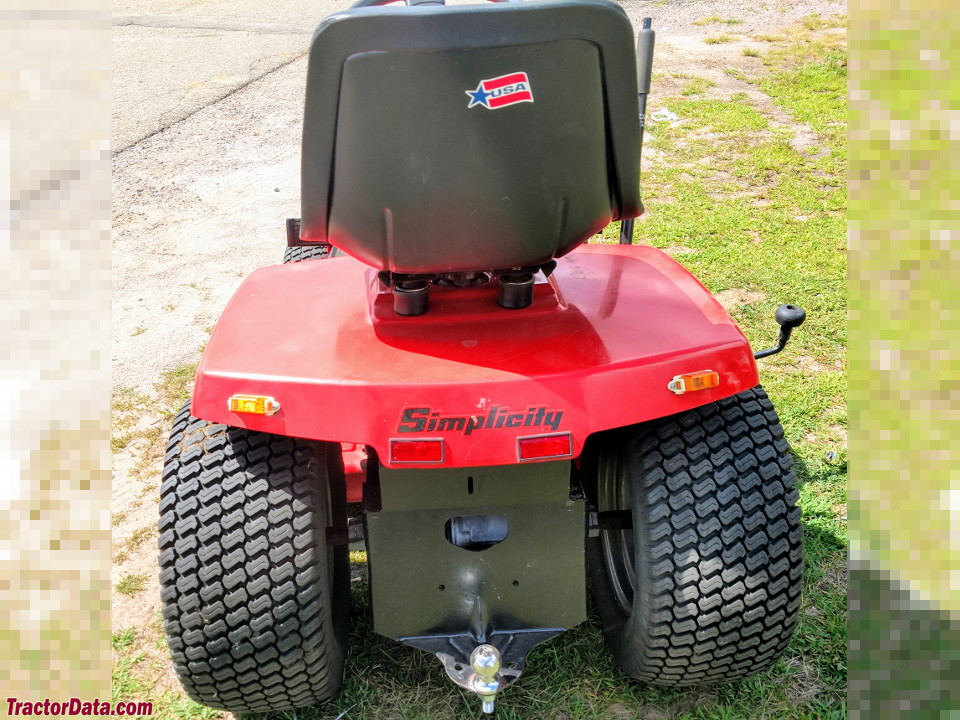

Simplicity Landlord 16, rear view.
