Simplicity Prestige 25

The Simplicity Prestige 25 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (gross): 25 hp / 18.6 kW. Transmission: Tuff Torq K71. Operating weight: 666 lbs 302 kg.

Overview

	2007 - 2009 Prestige SeriesGarden tractor Prestige Series Garden tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Garden tractor
Built in McDonough, Georgia, USA

Variants
2825H	similar Massey Ferguson model
GT500	similar Snapper model
1825H	similar AGCO model

Simplicity Prestige 25 Engine
25HP Kohler 724cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Prestige 25 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Steering	manual
	power optional
Disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Weight	666 lbs 302 kg
Front tire	16x6.5-8
Rear tire	24x12-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery volts	12

References
Operator's Manual Prestige / 1800 / 2800 / 500 Series, Conquest / 1700 / 2700 / 400 Series (1735106) published in 2010
Product Guide 2008 published by Simplicity

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer	Kohler CV730S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	724 cc 44.2 ci
Bore/Stroke	3.27x2.60 inches 83 x 66 mm
Power (gross)	25 hp 18.6 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K71

Transmission	Tuff Torq K71
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Prestige 25 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	24x12-12

Dimensions
Length	75 inches 190 cm
Width	41 inches 104 cm
Height	50 inches 127 cm
Shipping weight	666 lbs 302 kg
Front axle	Cast-iron

Attachments

Attachment overview
50" mid-mount mower deck
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

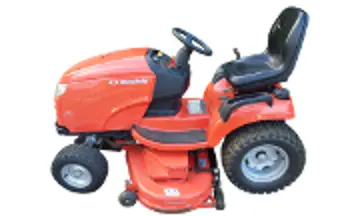

Simplicity Prestige 25 tractor photo
