Simplicity Prestige 27
The Simplicity Prestige 27 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 809 cc 49.4 ci engine. The listed engine power is Gasoline (gross): 27 hp / 20.1 kW. Transmission: Tuff Torq K664. Drive type: 4x2 2WD.
Engine Power
Gasoline (gross): 27 hp / 20.1 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
3.6 gal
13.6 L
Transmission
Tuff Torq K664
Overview
 | 2014 -
Prestige SeriesGarden tractor |
|---|---|
2014 - | |
Prestige Series | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | Simplicity (a part of Briggs & Stratton) |
Garden tractor | |
Built in McDonough, Georgia, USA | |
Original price | $7,999 (2014 ) |
$8,199 (2018 ) | |
$11,799 (2023 ) | |
Simplicity Prestige 27 Engine | |
|---|---|
27HP Briggs & Stratton 809cc 2-cyl gasoline | |
Fuel tank | 3.6 gal
13.6 L |
Engine details ...  | |
Simplicity Prestige 27 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
4x4 HFWD 4WD | |
Power steering | |
Disc brakes | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electro-magnetic |
Dimensions & Tires | |
|---|---|
Wheelbase | 53 inches
134 cm |
Front tire | 16x6.5-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 16 |
Battery volts | 12 |
Engine
Engine Detail — 809 cc / 49.4 ci Gasoline
Manufacturer | Briggs & Stratton 49T877 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 809 cc
49.4 ci |
Bore/Stroke | 3.3x2.9 inches
84 x 74 mm |
Power (gross) | 27 hp
20.1 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Tuff Torq K72
Transmission | Tuff Torq K72 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
The K71 was used on tractors with two-wheel drive. | |
 | |
Transmission — Tuff Torq K664
Transmission | Tuff Torq K664 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
The K664 was used on tractors with four-wheel drive. | |
 | |
Dimensions
Simplicity Prestige 27 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 23x10.5-12 |
Dimensions | |
|---|---|
Wheelbase | 53 inches
134 cm |
Length | 75 inches
190 cm |
Width | 63 inches
160 cm |
Height | 50 inches
127 cm |
Front axle | Cast-iron |
Front axle | Cast aluminum |
Attachments
Attachment overview | |
|---|---|
50" mid-mount mower deck | |
52" mid-mount mower deck | |
54" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

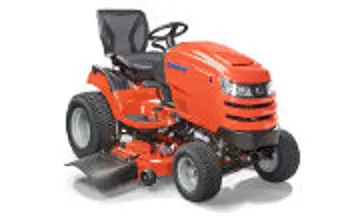

Simplicity Prestige 27 tractor photo
Simplicity Lawn Tractors Simplicity Prestige 27 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Prestige 27.
Converted Equivalents:
Horsepower (HP)27 hp
Kilowatts (kW)20.1 kW
Metric Horsepower (PS / CV)27.4 PS
