Simplicity Regent 16HV

The Simplicity Regent 16HV is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 529 cc 32.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Tuff Torq K46. Operating weight: 445 lbs 201 kg.

Overview

	2003 - 2004 Regent SeriesLawn tractor Regent Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Original price	$2,899 (2003 38-inch )
	$3,299 (2003 44-inch )

Simplicity Regent 16HV Engine
16HP Honda 529cc 2-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Simplicity Regent 16HV Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	50 inches 127 cm
Weight	445 lbs 201 kg
Front tire	15x6.5-6
Rear tire	20x8.0-8
Full dimensions and tires ...

References
The Way To A Beautiful Lawn published in 2003, by Simplicity
The Way To A Beautiful Lawn published in 2004, by Simplicity
Product Guide 2003 published by Simplicity

Engine

Engine Detail — 529 cc / 32.3 ci Gasoline

Manufacturer	Honda GVX530
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	529 cc 32.3 ci
Bore/Stroke	3.03x2.24 inches 77 x 57 mm
Power (gross)	16 hp 11.9 kW
Rated RPM	3600
Starter	electric
Starter volts	12

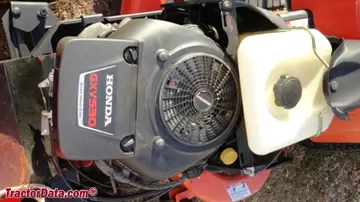

Simplicity Regent 16HV Engine
Image courtesy of Karl Kleeberg

Transmission

Transmission — Tuff Torq K46

Transmission	Tuff Torq K46
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Regent 16HV Tires
Lawn/turf front	15x6.5-6
Lawn/turf rear	20x8.0-8

Dimensions
Wheelbase	50 inches 127 cm
Length	68 inches 172 cm
Width	36 inches 91 cm
Height (steering wheel)	41 inches 104 cm
Weight	445 lbs 201 kg

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade

Photos

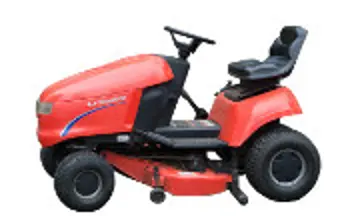

Simplicity Regent 16HV lawn tractor.
