Simplicity Regent 22/42

The Simplicity Regent 22/42 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Hydro-Gear T2-HP.

Overview

	2014 - Regent SeriesLawn tractor
2014 -
Regent Series
Lawn tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Lawn tractor
Original price was $2,099 in 2015

Simplicity Regent 22/42 Engine
22HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Simplicity Regent 22/42 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station. Soft-side weather cab optional.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Front tire	15x6
Rear tire	20x8
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	230
Battery volts	12

Engine

Engine Detail — 724 cc / 44.18 ci Gasoline

Manufacturer	Briggs & Stratton Intek
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	724 cc 44.18 ci
Bore/Stroke	3.12x2.89 inches 79 x 73 mm
Power (gross)	22 hp 16.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear T2-HP

Transmission	Hydro-Gear T2-HP
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Regent 22/42 Tires
Lawn/turf front	15x6
Lawn/turf rear	20x8

Dimensions
Length	71 inches 180 cm
Width	52 inches 132 cm
Height	42 inches 106 cm
Front axle	Cast-iron

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade

42" Mower deck
Type	mid-mount Simplicity
	2-blade with manual lift
Cutting width	42 inches 106 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	7

Photos

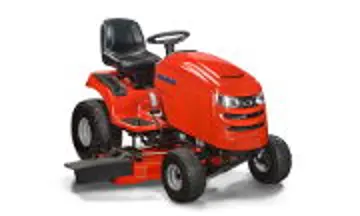

Simplicity Regent 22/42 tractor photo
