Simplicity Regent 22/44

The Simplicity Regent 22/44 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 721 cc 44 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Tuff Torq K46 HD. Operating weight: 112 lbs 50 kg.

Overview

	2006 - 2009 Regent SeriesLawn tractor Regent Series Lawn tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Lawn tractor
Original price was $2,900 in 2009

Variants
2522H	similar Massey Ferguson model
522H	similar AGCO model

Simplicity Regent 22/44 Engine
22HP Briggs & Stratton 721cc 2-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Simplicity Regent 22/44 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	50 inches 127 cm
Weight	430 lbs 195 kg
Front tire	15x6-6
Rear tire	22x10-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	9
Battery CCA	230
Battery volts	12

References
Product Guide 2008 published by Simplicity
Operator's Manual Regent / 500 / 2500 Series (1730215) published in 2006

Engine

Engine Detail — 721 cc / 44 ci Gasoline

Manufacturer	Briggs & Stratton 44K777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	721 cc 44 ci
Bore/Stroke	3.12x2.89 inches 79 x 73 mm
Power (gross)	22 hp 16.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K46 HD

Transmission	Tuff Torq K46 HD
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Regent 22/44 Tires
Lawn/turf front	15x6-6
Lawn/turf rear	22x10-8

Dimensions
Wheelbase	50 inches 127 cm
Length	71 inches 180 cm
Width	37 inches 93 cm
Height (steering wheel)	45 inches 114 cm
Weight	430 lbs 195 kg
Front axle	Cast-iron
Rear axle	0.75 inch diameter 19 mm

Attachments

Attachment overview
44" mid-mount mower deck
Snowblower
Blade

44" Mower deck
Type	mid-mount Simplicity 1695130
	3-blade with manual lift
Cutting width	44 inches 111 cm
Weight	112 lbs 50 kg
Overall width	56 inches 142 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	infinite

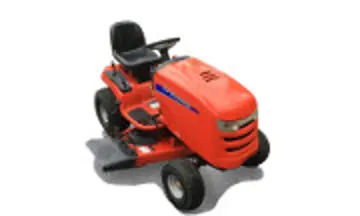

Photos

Simplicity Regent 22/44
