Simplicity Serf 515

The Simplicity Serf 515 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 206 cc 12.57 ci engine. The listed engine power is Gasoline (listed): 5 hp / 3.7 kW. Transmission: 2 forward and 1 reverse. Operating weight: 65 lbs 29 kg.

Overview

	1968 Serf SeriesLawn tractor Serf Series Lawn tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Lawn tractor
Original price was $313 in 1968

Simplicity Serf 515 Engine
5HP Briggs & Stratton 206cc 1-cyl gasoline
Engine details ...

Simplicity Serf 515 Transmission
2-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Weight	257 lbs 116 kg
Front tire	4.00x6
Rear tire	4.80/4.00x8
Full dimensions and tires ...

References
Improve your lot in life published in 1968, by Simplicity
Operator's Manual Serf 515 published in 1968

Engine

Engine Detail — 206 cc / 12.57 ci Gasoline

Manufacturer	Briggs & Stratton 130000
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	206 cc 12.57 ci
Bore/Stroke	2.56x2.44 inches 65 x 62 mm
Power	5 hp 3.7 kW
Fuel system	carburetor
Starter type	manual recoil
Oil capacity	0.9 qts 0.9 L

Transmission

Transmission — 2 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	2 forward and 1 reverse

Dimensions

Simplicity Serf 515 Tires
Lawn/turf front	4.00x6
Lawn/turf rear	4.80/4.00x8

Dimensions
Length	51.5 inches 130 cm
Width	26 inches 66 cm
Shipping weight	257 lbs 116 kg

Attachments

Attachment overview
28" mid-mount mower deck
Blade

28" Mower deck
Type	mid-mount Simplicity 990442
	2-blade with manual lift
Cutting width	28 inches 71 cm
Weight	65 lbs 29 kg
Cut height	1.25 to 3.375 inch 3 to 8 cm

Photos

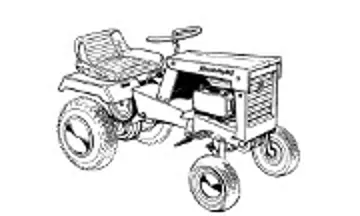

Simplicity Serf 515 tractor photo
