Simplicity Stallion ZT2561

The Simplicity Stallion ZT2561 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (gross): 25 hp / 18.6 kW. Transmission: Hydro-Gear BDP-10A/TF-024. Operating weight: 1245 lbs 564 kg.

Overview

	2001 - 2005 Stallion SeriesZero-turn mowerFerris built Stallion Series Zero-turn mower Ferris built

Production
Distributor	Simplicity
Manufacturer	Ferris
Zero-turn mower

Simplicity Stallion ZT2561 Engine
25HP Kohler 724cc 2-cyl gasoline
Fuel tank	9 gal 34.1 L
Engine details ...

Simplicity Stallion ZT2561 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Weight	1245 lbs 564 kg
Front tire	13x5.00-6
Rear tire	23x10.50-10
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	340
Battery volts	12

References
Zero-Turn Riding Mowers published in 2005, by Simplicity
Product Guide Fall 2001 published by Simplicity
Product Guide 2003 published by Simplicity

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer	Kohler CV730S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	724 cc 44.2 ci
Bore/Stroke	3.27x2.64 inches 83 x 67 mm
Power (gross)	25 hp 18.6 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear BDP-10A/TF-024

Transmission	Hydro-Gear BDP-10A/TF-024
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Stallion ZT2561 Tires
Lawn/turf front	13x5.00-6
Lawn/turf rear	23x10.50-10

Dimensions
Length	81 inches 205 cm
Height	54 inches 137 cm
Weight	1245 lbs 564 kg

Attachments

61" Mower deck
Type	mid-mount Simplicity
	3-blade
Cutting width	61 inches 154 cm
Cut height	1.5 to 5 inch 3 to 12 cm

Photos

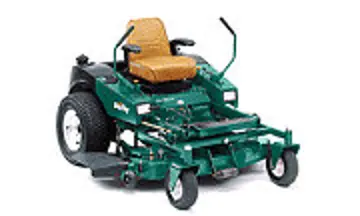

Simplicity Stallion ZT2561
