Simplicity Stallion ZT2761

The Simplicity Stallion ZT2761 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Engine Detail — 724 cc / 44.2 ci (listed): 27 hp / 20.1 kW. Transmission: Hydro-Gear BDP-10A/TF-024. Operating weight: 1245 lbs 564 kg.

Overview

	2004 - 2005 Stallion SeriesZero-turn mowerFerris built Stallion Series Zero-turn mower Ferris built

Production
Distributor	Simplicity (a part of Briggs & Stratton)
Manufacturer	Ferris
Zero-turn mower

Simplicity Stallion ZT2761 Engine
27HP Kohler 724cc 2-cyl
Fuel tank	9 gal 34.1 L
Engine details ...

Simplicity Stallion ZT2761 Transmission
hydrostatic
Transmission details ...

Mechanical
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Weight	1245 lbs 564 kg
Front tire	13x5.00-6
Rear tire	23x10.50-10
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	340
Battery volts	12

Engine

Engine Detail — 724 cc / 44.2 ci

Manufacturer	Kohler CV740S
Configuration	2-cylinder
vertical-shaft V-Twin
Displacement	724 cc 44.2 ci
Bore/Stroke	3.27x2.64 inches 83 x 67 mm
Power	27 hp 20.1 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear BDP-10A/TF-024

Transmission	Hydro-Gear BDP-10A/TF-024
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Stallion ZT2761 Tires
Lawn/turf front	13x5.00-6
Lawn/turf rear	23x10.50-10

Dimensions
Length	81 inches 205 cm
Height	54 inches 137 cm
Weight	1245 lbs 564 kg

Attachments

61" Mower deck
Type	mid-mount Simplicity
	3-blade
Cutting width	61 inches 154 cm
Cut height	1.5 to 5 inch 3 to 12 cm

Photos

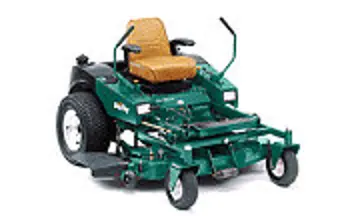

Simplicity Stallion ZT2761 tractor photo
