Snapper 421823BVE
The Snapper 421823BVE is a tractor produced by Snapper Lawn Tractors. The rated power output is 18 hp 13.4 kW. Transmission: 5 forward and 1 reverse. Operating weight: 432 lbs 195 kg.
Overview
 | 2003
23 SeriesRiding lawn mower |
|---|---|
2003 | |
23 Series | |
Riding lawn mower | |
2003 | |
|---|---|
23 Series | |
Riding lawn mower |
Production | |
|---|---|
Manufacturer | Snapper |
Riding lawn mower | |
Snapper 421823BVE Engine | |
|---|---|
18HP Briggs & Stratton 2-cyl gasoline | |
Fuel tank | 1.75 gal
6.6 L |
Engine details ...  | |
Snapper 421823BVE Transmission | |
|---|---|
5-speed friction disc | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
Snapper 421823BVE photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 432 lbs
195 kg |
Front tire | 11x4.00-4 |
Rear tire | 16x6.50-8 |
Full dimensions and tires ...  | |
Snapper 421823BVE attachments | |
|---|---|
42" mid-mount mower deck | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Legendary Quality published in 2003, by Snapper |
Engine
| 2003
23 SeriesRiding lawn mower |
|---|---|
2003 | |
23 Series | |
Riding lawn mower | |
2003 | |
|---|---|
23 Series | |
Riding lawn mower |
Engine Detail | |
|---|---|
Briggs & Stratton | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft | |
Power (gross) | 18 hp
13.4 kW |
Starter | electric |
Starter volts | 12 |

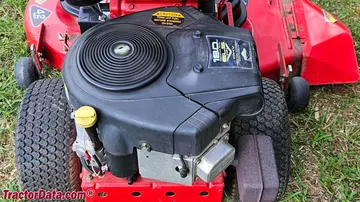

Snapper 421823BVE Engine | |
|---|---|
 | |
Image courtesy of Geenway Farms |
Transmission
| 2003
23 SeriesRiding lawn mower |
|---|---|
2003 | |
23 Series | |
Riding lawn mower | |
2003 | |
|---|---|
23 Series | |
Riding lawn mower |
Transmission | |
|---|---|
Type | friction disc |
Gears | 5 forward and 1 reverse |
Speeds | |
|---|---|
 |
Dimensions
| 2003
23 SeriesRiding lawn mower |
|---|---|
2003 | |
23 Series | |
Riding lawn mower | |
2003 | |
|---|---|
23 Series | |
Riding lawn mower |
Snapper 421823BVE Tires | |
|---|---|
Lawn/turf front | 11x4.00-4 |
Lawn/turf rear | 16x6.50-8 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 65 inches
165 cm |
Height | 39.5 inches
100 cm |
Weight | 432 lbs
195 kg |
Attachments
| 2003
23 SeriesRiding lawn mower |
|---|---|
2003 | |
23 Series | |
Riding lawn mower | |
2003 | |
|---|---|
23 Series | |
Riding lawn mower |
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount Snapper |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Overall width | 52 inches
132 cm |
Cut height | 1.5 to 4.0 inch
3 to 10 cm |
Photos

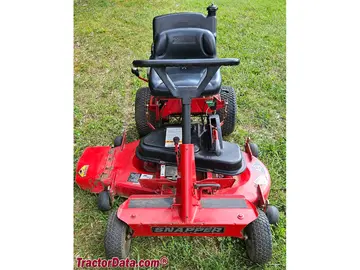

Snapper 421823BVE
Snapper 421823BVE
Snapper 421823BVE
Snapper 421823BVE
