Snapper HYT18
The Snapper HYT18 is a tractor produced by Snapper Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: Eaton 850. Operating weight: 553 to 623 pounds.
Overview
 | 1989
Garden tractor |
|---|---|
1989 | |
Garden tractor | |
1989 | |
|---|---|
Garden tractor |
Production | |
|---|---|
Manufacturer | Snapper |
Garden tractor | |
Variants | |
|---|---|
HYT1833 | 33-inch deck |
HYT1841 | 41-inch deck |
HYT1848 | 48-inch deck |
Snapper HYT18 Engine | |
|---|---|
18HP Kohler 691cc 2-cyl gasoline | |
Fuel tank | 2.5 gal
9.5 L |
Engine details ...  | |
Snapper HYT18 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Photos | |
|---|---|
 | |
Snapper HYT18 photos...  |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 553 to 623 pounds |
Front tire | 15x6.00-6 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Snapper HYT18 attachments | |
|---|---|
33" mid-mount mower deck | |
41" mid-mount mower deck | |
48" mid-mount mower deck | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 20 |
Engine
| 1989
Garden tractor |
|---|---|
1989 | |
Garden tractor | |
1989 | |
|---|---|
Garden tractor |
Engine Detail | |
|---|---|
Kohler M18 | |
gasoline | |
2-cylinder | |
air-cooled horizontal-shaft | |
Displacement | 691 cc
42.18 ci |
Bore/Stroke | 3.125x2.75 inches
79 x 70 mm |
Power (gross) | 18 hp
13.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 1989
Garden tractor |
|---|---|
1989 | |
Garden tractor | |
1989 | |
|---|---|
Garden tractor |
Transmission | |
|---|---|
Transmission | Eaton 850 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Speeds | |
|---|---|
With 23x10.5-12 rear tires. | |
 |
Dimensions
| 1989
Garden tractor |
|---|---|
1989 | |
Garden tractor | |
1989 | |
|---|---|
Garden tractor |
Snapper HYT18 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 23x10.5-12 |
Lawn/turf front | 21x7.00-10 (HYT1833) |
Dimensions | |
|---|---|
Length | 68.25 inches
173 cm |
Width | 38.5 inches
97 cm |
Height (steering wheel) | 44 inches
111 cm |
Front axle | Cast-iron |
Snapper HYT18 Weight | |
|---|---|
HYT1833 | 553 lbs
250 kg |
HYT1841 | 588 lbs
266 kg |
HYT1848 | 623 lbs
282 kg |
Attachments
| 1989
Garden tractor |
|---|---|
1989 | |
Garden tractor | |
1989 | |
|---|---|
Garden tractor |
Attachment overview | |
|---|---|
33" mid-mount mower deck | |
41" mid-mount mower deck | |
48" mid-mount mower deck | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

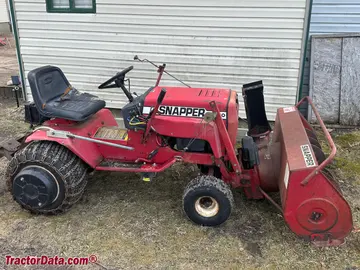

Snapper HYT18 (HYT1841) garden tractor with snowblower.
