Snapper LT2042
The Snapper LT2042 is a tractor produced by Snapper Lawn Tractors. The rated power output is 20 hp 14.9 kW. Transmission: Tuff Torq K-46. Operating weight: 494 lbs 224 kg.
Overview
 | 2006 - 2010
LT200 SeriesLawn tractor |
|---|---|
2006 - 2010 | |
LT200 Series | |
Lawn tractor | |
2006 - 2010 | |
|---|---|
LT200 Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | Snapper (a part of Briggs & Stratton) |
Lawn tractor | |
Original price was $2,350 in 2007 | |
Snapper LT2042 Engine | |
|---|---|
20HP Briggs & Stratton 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Snapper LT2042 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 50 inches
127 cm |
Weight | 494 lbs
224 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x8.00-8 |
Full dimensions and tires ...  | |
Snapper LT2042 attachments | |
|---|---|
42" mid-mount mower deck | |
Attachment details ...  |

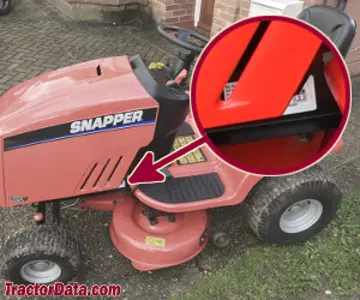

LT2042 Serial Number Location | |
|---|---|
 | |
Serial number decal on the left side of the tractor frame, just ahead of the footrest. |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 230 |
Battery volts | 12 |
Engine
| 2006 - 2010
LT200 SeriesLawn tractor |
|---|---|
2006 - 2010 | |
LT200 Series | |
Lawn tractor | |
2006 - 2010 | |
|---|---|
LT200 Series | |
Lawn tractor |
Engine Detail | |
|---|---|
Briggs & Stratton | |
gasoline | |
2-cylinder | |
air-cooled | |
Power | 20 hp
14.9 kW |
Starter volts | 12 |
Transmission
| 2006 - 2010
LT200 SeriesLawn tractor |
|---|---|
2006 - 2010 | |
LT200 Series | |
Lawn tractor | |
2006 - 2010 | |
|---|---|
LT200 Series | |
Lawn tractor |
Transmission | |
|---|---|
Transmission | Tuff Torq K-46 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Speeds | |
|---|---|
 |
Dimensions
| 2006 - 2010
LT200 SeriesLawn tractor |
|---|---|
2006 - 2010 | |
LT200 Series | |
Lawn tractor | |
2006 - 2010 | |
|---|---|
LT200 Series | |
Lawn tractor |
Snapper LT2042 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x8.00-8 |
Dimensions | |
|---|---|
Wheelbase | 50 inches
127 cm |
Length | 71 inches
180 cm |
Width | 37 inches
93 cm |
Height | 44 inches
111 cm |
Weight | 494 lbs
224 kg |
Attachments
| 2006 - 2010
LT200 SeriesLawn tractor |
|---|---|
2006 - 2010 | |
LT200 Series | |
Lawn tractor | |
2006 - 2010 | |
|---|---|
LT200 Series | |
Lawn tractor |
42" Mower deck | |
|---|---|
Type | mid-mount Snapper |
Cutting width | 42 inches
106 cm |
