Solis H24

The Solis H24 is a tractor produced by Solis. It is equipped with a 80.4 ci 1.3 L engine. The rated power output is 24 hp 17.9 kW. Transmission: infinite forward and reverse (2-range). Drive type: shaft. Operating weight: 826 lbs 374 kg.

Overview

	2021 - Compact Utility tractor
2021 -
Compact Utility tractor

Production
Manufacturer	Solis (a part of Sonalika)
Compact Utility tractor
Built in India

Variants
S24	gear
S24XL	shuttle
H24	hydrostatic

Solis H24 Engine
Mitsubishi 1.3L 3-cyl diesel
Fuel tank	7 gal 26.5 L
Engine details ...

Solis H24 Transmission
hydrostatic
Transmission details ...

Solis H24 Power
Engine	24 hp 17.9 kW

Mechanical
Four-wheel drive
Final drives	bull gear
Differential lock	mechanical rear
Power steering
Mechanical wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Pump flow	3.98 gpm 15.1 lpm

Tractor hitch
Rear Type	IN
Rear lift (at ends)	1323 lbs 600 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540 (1.375)
Engine RPM	540@2451
Mid PTO	independent OptOptional
Engine RPM	2100@2438

Dimensions & Tires
Wheelbase	61.8 inches 156 cm
Weight	2513 to 3108 pounds
Front tire	6-12
Rear tire	8.3-20
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

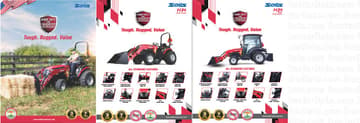

References
Solis: Get Rugged Value with Reliability and Comfort. published in 2021, by International Tractors USA
Solis: Tough. Rugged. Value. published in 2024, by International Tractors USA
Solis H24 published in 2024, by International Tractors USA
Solis H24 Cabin published in 2024, by International Tractors USA

Engine

Engine Detail — 80.4 ci / 1.3 L Diesel

Manufacturer	Mitsubishi S3L2
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	80.4 ci 1.3 L
Bore/Stroke	3.071x3.622 inches 78 x 92 mm
Power	24 hp 17.9 kW
Air cleaner	dry
Rated RPM	2500
Torque	56.3 lb-ft 76.3 Nm
Torque RPM	2000
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

Solis H24 Tires
Standard tires (ag)	Front: 6-12. Rear: 8.3-20
Optional tires (ag)	Front: 6.5/80-12. Rear: 280/70R18
Lawn/turf front	23x8.50-12
Lawn/turf rear	33x15.5-16.5
Lawn/turf front	220/55R12
Lawn/turf rear	280/70R16
Industrial front	23x8.50-12
Industrial rear	33x15.5-16.5

Dimensions
Wheelbase	61.8 inches 156 cm
Length	114 inches 289 cm
Width	47.8 inches 121 cm
Height (ROPS)	91.5 inches 232 cm
Height (cab)	93 inches 236 cm
ROPS Weight	2513 lbs 1139 kg
Cab Weight	3108 lbs 1409 kg
Ground clearance	9.4 inches 23 cm

Attachments

Attachment overview
60" mid-mount mower deck
Backhoe

60" Mower deck
Type	mid-mount Solis SLMM-60
	3-blade with hydraulic lift
Cutting width	60 inches 152 cm
Drive	shaft
Weight	353 lbs 160 kg
Overall width	73.2 inches 185 cm
Cut height	1 to 3.5 inch 2 to 8 cm

Solis SLBH-155 Backhoe
Backhoe type	Solis SLBH-155 Backhoe
Weight	826 lbs 374 kg
Bucket width	14 inches 35 cm
	16 inches 40 cm
Digging depth	60 inches 152 cm
Reach from pivot	88.2 inches 224 cm
Loading height	61 inches 154 cm
Bucket Rotation	180°
Bucket force	2400 lbs 1088 kg

Photos

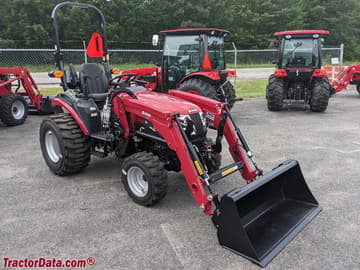

Solis H24 compact utility tractor.
