Solis S24
The Solis S24 is a tractor produced by Solis. It is equipped with a 80.4 ci 1.3 L engine. The listed engine power is Diesel (listed): 24 hp / 17.9 kW. Transmission: 9 forward and reverse. Operating weight: 826 lbs 374 kg.
Engine Power
Diesel (listed): 24 hp / 17.9 kW
Fuel & Capacities
7 gal
26.5 L
Transmission
9 forward and reverse
Operating Weight
826 lbs
374 kg
Overview
 | 2021 -
Compact Utility tractor |
|---|---|
2021 - | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Solis (a part of Sonalika) |
Compact Utility tractor | |
Built in India | |
Variants | |
|---|---|
S24 | gear |
S24XL | shuttle |
H24 | hydrostatic |
Solis S24 Engine | |
|---|---|
Mitsubishi 1.3L 3-cyl diesel | |
Fuel tank | 7 gal
26.5 L |
Engine details ...  | |
Solis S24 Power | |
|---|---|
Engine | 24 hp
17.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Mechanical wet disc brakes | |
Two-post folding ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 3.27 gpm
12.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | IN |
Rear lift (at ends) | 1323 lbs
600 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 61.4 inches
155 cm |
Weight | 2293 lbs
1040 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
Solis: Get Rugged Value with Reliability and Comfort. published in 2021, by International Tractors USA | |
Solis: Tough. Rugged. Value. published in 2024, by International Tractors USA |
Engine
Engine Detail — 80.4 ci / 1.3 L Diesel
Manufacturer | Mitsubishi S3L2 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 80.4 ci
1.3 L |
Bore/Stroke | 3.071x3.622 inches
78 x 92 mm |
Power | 24 hp
17.9 kW |
Air cleaner | dry |
Rated RPM | 2500 |
Torque | 56.3 lb-ft
76.3 Nm |
Torque RPM | 2000 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
6-speed gear | |
9-speed shuttle |
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
Transmission — 9 forward and reverse shuttle
Type | shuttle |
Gears | 9 forward and reverse |
Dimensions
Solis S24 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 61.4 inches
155 cm |
Length | 108.7 inches
276 cm |
Width | 42.3 inches
107 cm |
Height (ROPS) | 84.3 inches
214 cm |
Weight | 2293 lbs
1040 kg |
Attachments
Solis SLBH-155 Backhoe | |
|---|---|
Backhoe type | Solis SLBH-155 Backhoe |
Weight | 826 lbs
374 kg |
Bucket width | 14 inches
35 cm |
16 inches
40 cm | |
Digging depth | 60 inches
152 cm |
Reach from pivot | 88.2 inches
224 cm |
Loading height | 61 inches
154 cm |
Bucket Rotation | 180° |
Bucket force | 2400 lbs
1088 kg |
Photos

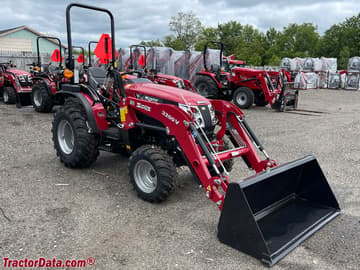

Solis S24 compact utility tractor.
Recommended Implements & Sizing Guide
Engineering recommendations for Solis S24 based on its 24 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Solis S24.
Estimated Continuous Field Runtime: 5.6 hrs
Approximately 5.6 hours of continuous field operation at ~75% rated power on a full tank (7 gal / 26.5 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Solis S24 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Solis S24.
Converted Equivalents:
Horsepower (HP)24 hp
Kilowatts (kW)17.9 kW
Metric Horsepower (PS / CV)24.3 PS
Direct Competitor Comparison
Compare Solis S24 against same-era industry alternatives in the same horsepower class.
Current Model
Solis
Solis S24
Engine Power:Diesel (listed): 24 hp / 17.9 kW
★ Baseline Reference
