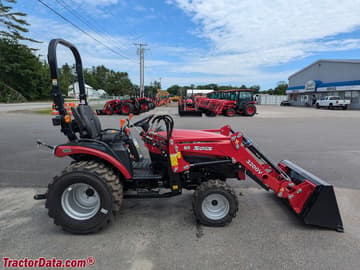

Solis S24XL
The Solis S24XL is a tractor produced by Solis. It is equipped with a 80.4 ci 1.3 L engine. The listed engine power is Diesel (listed): 24 hp / 17.9 kW. Transmission: 9 forward and reverse. Operating weight: 826 lbs 374 kg.
Engine Power
Diesel (listed): 24 hp / 17.9 kW
Fuel & Capacities
5.8 gal
22.0 L
Transmission
9 forward and reverse
Operating Weight
826 lbs
374 kg
Overview
![]() | 2023 -
Compact Utility tractor |
|---|---|
2023 - | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Solis (a part of Sonalika) |
Compact Utility tractor | |
Built in India | |
Variants | |
|---|---|
S24 | gear |
S24XL | shuttle |
H24 | hydrostatic |
Solis S24XL Engine | |
|---|---|
Mitsubishi 1.3L 3-cyl diesel | |
Fuel tank | 5.8 gal
22.0 L |
Engine details ... | |
Solis S24XL Transmission | |
|---|---|
9-speed shuttle | |
Transmission details ... |
Solis S24XL Power | |
|---|---|
Engine | 24 hp
17.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Two-post folding ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 6.5 gpm
24.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | IN |
Rear lift (at ends) | 1312 lbs
595 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 61.8 inches
156 cm |
Weight | 2513 lbs
1139 kg |
Front tire | 6-12 |
Rear tire | 8.3-20 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Solis: Tough. Rugged. Value. published in 2024, by International Tractors USA |
Engine
Engine Detail — 80.4 ci / 1.3 L Diesel
Manufacturer | Mitsubishi S3L2 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 80.4 ci
1.3 L |
Bore/Stroke | 3.071x3.622 inches
78 x 92 mm |
Power | 24 hp
17.9 kW |
Air cleaner | dry |
Rated RPM | 2500 |
Torque | 56.3 lb-ft
76.3 Nm |
Torque RPM | 2000 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 9 forward and reverse shuttle
Type | shuttle |
Gears | 9 forward and reverse |
Dimensions
Solis S24XL Tires | |
|---|---|
Standard tires (ag) | Front: 6-12. Rear: 8.3-20 |
Optional tires (ag) | Front: 7-14. Rear: 8.3-24 |
Lawn/turf front | 23x8.50-12 |
Lawn/turf rear | 33x15.5-16.5 |
Lawn/turf front | 220/55R12 |
Lawn/turf rear | 280/70R16 |
Industrial front | 23x8.50-12 |
Industrial rear | 33x15.5-16.5 |
Dimensions | |
|---|---|
Wheelbase | 61.8 inches
156 cm |
Length | 114 inches
289 cm |
Width | 47.8 inches
121 cm |
Height (ROPS) | 91.5 inches
232 cm |
Weight | 2513 lbs
1139 kg |
Attachments
Solis SLBH-155 Backhoe | |
|---|---|
Backhoe type | Solis SLBH-155 Backhoe |
Weight | 826 lbs
374 kg |
Bucket width | 14 inches
35 cm |
16 inches
40 cm | |
Digging depth | 60 inches
152 cm |
Reach from pivot | 88.2 inches
224 cm |
Loading height | 61 inches
154 cm |
Bucket Rotation | 180° |
Bucket force | 2400 lbs
1088 kg |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Solis S24XL based on its 24 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Solis S24XL.
Estimated Continuous Field Runtime: 4.6 hrs
Approximately 4.6 hours of continuous field operation at ~75% rated power on a full tank (5.8 gal / 22 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Solis S24XL Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Solis S24XL.
Converted Equivalents:
Horsepower (HP)24 hp
Kilowatts (kW)17.9 kW
Metric Horsepower (PS / CV)24.3 PS
Direct Competitor Comparison
Compare Solis S24XL against same-era industry alternatives in the same horsepower class.
Current Model
Solis
Solis S24XL
Engine Power:Diesel (listed): 24 hp / 17.9 kW
★ Baseline Reference
