Steiner 230

The Steiner 230 is a tractor produced by Steiner Lawn Tractors. It is equipped with a 781 cc 47.7 ci engine. The listed engine power is Diesel (listed): 28 hp / 20.9 kW; Gasoline (listed): 25 hp / 18.6 kW; Engine Detail — 753 cc / 46 ci (listed): 27 hp / 20.1 kW. Transmission: infinite forward and reverse. Drive type: 4x2 2WD front-wheel drive. Operating weight: 1290 to 1410 pounds.

Overview

	1998 - 2006 Garden tractor

Production
Manufacturer	Steiner
Garden tractor
Built in Johnson Creek, Wisconsin, USA

Variants
75-70254	20HP air-cooled gas Onan
75-70256	27HP air-cooled gas Kohler
75-70258	liquid-cooled gas Kubota
75-70260	23.5HP liquid-cooled diesel Kubota
75-70265	28HP liquid-cooled diesel Kubota

Steiner 230 Transmission
hydrostatic
Transmission details ...

Mechanical
Drive	4x2 2WD front-wheel drive
Steering	hydraulic power
Drum brakes
Steel frame, fabric-door cab optional

Tractor hitch
Type	Steiner Quick-Hitch

Dimensions & Tires
Wheelbase	50 inches 127 cm
Weight	1290 to 1410 pounds
Full dimensions and tires ...

Engine

Engine options
28HP Kubota 1122cc 3-cyl diesel
25HP Kubota 740cc 3-cyl gasoline
27HP Kohler 753cc 2-cyl
Onan 781cc 2-cyl gasoline

Engine Detail — 1122 cc / 68.5 ci Diesel

Manufacturer	Kubota D1105
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	1122 cc 68.5 ci
Bore/Stroke	3.07x3.09 inches 78 x 78 mm
Power	28 hp 20.9 kW
Starter	electric
Starter volts	12

Engine Detail — 740 cc / 45.2 ci Gasoline

Manufacturer	Kubota WG752
Fuel Type	Gasoline
Configuration	3-cylinder, liquid-cooled
The 21-hosepower WG750 was also available.
Displacement	740 cc 45.2 ci
Bore/Stroke	2.68x2.68 inches 68 x 68 mm
Power	25 hp 18.6 kW
Starter	electric
Starter volts	12

Engine Detail — 753 cc / 46 ci

Manufacturer	Kohler CH750QS
Configuration	2-cylinder, air-cooled horizontal-shaft V-Twin
Displacement	753 cc 46 ci
Bore/Stroke	3.27x2.70 inches 83 x 69 mm
Power	27 hp 20.1 kW
Starter	electric
Starter volts	12

Engine Detail — 781 cc / 47.7 ci Gasoline

Manufacturer	Onan P220G
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft horizontally-opposed
Displacement	781 cc 47.7 ci
Bore/Stroke	3.258x2.875 inches 83 x 73 mm
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Sauer/Dan Foss hydrostatic transmission with dual-speed Peerless 2600 transaxle.

Dimensions

Steiner 230 Tires
Ag front	24x12-12
Ag rear	18x8.5-8

Dimensions
Wheelbase	50 inches 127 cm
Length	82 inches 208 cm
Width	58 inches 147 cm
Height	45 inches 114 cm
	69.5 inches (cab) 176 cm

Steiner 230 Weight
	1,290 lbs (Kohler) 585 kg
	1,410 lbs (Kubota diesel) 639 kg
	1,360 lbs (Kubota gas) 616 kg

Photos

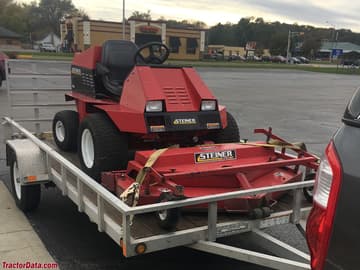

Steiner 230
