Steiner 450

The Steiner 450 is a tractor produced by Steiner Lawn Tractors. It is equipped with a 993 cc 60.6 ci engine. The listed engine power is Diesel (gross): 24.8 hp / 18.5 kW; Gasoline (gross): 32.4 hp / 24.2 kW; Gasoline (gross): 33 hp / 24.6 kW. Transmission: Eaton 70160. Operating weight: 1575 to 1665 pounds.

Overview

	2016 - Garden tractor
2016 -
Garden tractor

Production
Manufacturer	Steiner
Garden tractor

Variants
75-75025	Kubota D902
75-75032	Kubota WG972
75-75037	Vanguard M61

Steiner 450 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Articulated power steering
Disc brakes
Two-post folding ROPS. Cab optional.

Capacity
Fuel	7 gal 26.5 L
Hydraulic system	5.25 gal 19.9 L

Hydraulics
Capacity	5.25 gal 19.9 L
Pressure	1750 psi 120.7 bar
Pump flow	6 gpm 22.7 lpm

Tractor hitch
Rear Type	I OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	43.5 inches 110 cm
Weight	1575 to 1665 pounds
Front tire	22x12-10
Rear tire	22x12-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
2017 Steiner Product Catalog engineered for unmatched versatility
Four seasons. One tractor. published in 2020, by Steiner

Engine

Engine options
24.8HP Kubota 898cc 3-cyl diesel
32.4HP Kubota 962cc 3-cyl gasoline
33HP Briggs & Stratton 993cc 2-cyl gasoline

Engine Detail — 898 cc / 54.8 ci Diesel

Manufacturer	Kubota D902
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	898 cc 54.8 ci
Bore/Stroke	2.83x2.90 inches 72 x 74 mm
Power (gross)	24.8 hp 18.5 kW
Rated RPM	3600
Starter	electric
Starter volts	12

Engine Detail — 962 cc / 58.7 ci Gasoline

Manufacturer	Kubota WG972
Fuel Type	Gasoline
Configuration	3-cylinder, liquid-cooled
Displacement	962 cc 58.7 ci
Bore/Stroke	2.933x2.898 inches 74 x 74 mm
Power (gross)	32.4 hp 24.2 kW
Rated RPM	3600
Starter	electric
Starter volts	12

Engine Detail — 993 cc / 60.6 ci Gasoline

Manufacturer	Briggs & Stratton M61
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-Twin
Displacement	993 cc 60.6 ci
Bore/Stroke	3.37x3.41 inches 86 x 87 mm
Power (gross)	33 hp 24.6 kW
Fuel system	electronic fuel injection (EFI)
Starter	electric
Starter volts	12

Transmission

Transmission — Eaton 70160

Transmission	Eaton 70160
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse (2-range)
Peerless 2600 transaxle.

Dimensions

Steiner 450 Tires
Lawn/turf front	22x12-10
Lawn/turf rear	22x12-10

Dimensions
Wheelbase	43.5 inches 110 cm
Length	77 inches 195 cm
Width	44.5 inches 113 cm
Height (ROPS)	73.5 inches 186 cm
Ground clearance	4.75 inches 12 cm

Steiner 450 Weight
Kubota diesel	1665 lbs 755 kg
Kubota gas	1660 lbs 752 kg
Vangurd gas	1575 lbs 714 kg

Attachments

Attachment overview
48" front-mount mower deck
60" front-mount mower deck
72" front-mount mower deck
80" front-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

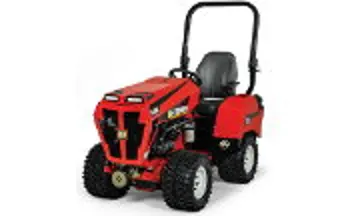

Steiner 450 tractor photo
