Steiner 428 Utilimax
The Steiner 428 Utilimax is a tractor produced by Steiner Lawn Tractors. It is equipped with a 952 cc 58.1 ci engine. The rated power output is 34 hp 25.4 kW. Transmission: infinite forward and reverse (2-range). Drive type: 4x4 4WD.
Engine Power
34 hp
25.4 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
Gasoline
Transmission
infinite forward and reverse (2-range)
Steiner Lawn Tractors Steiner 428 Utilimax Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2002 - 2006
Garden tractor |
|---|---|
2002 - 2006 | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | Steiner |
Garden tractor | |
Variants | |
|---|---|
75-70132 | 26.5HP diesel |
75-70134 | 31HP gas |
75-70136 | 34HP turbodiesel |
Steiner 428 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine options | |
|---|---|
26.5HP Daihatsu 952cc 3-cyl diesel | |
31HP Daihatsu 952cc 3-cyl gasoline | |
34HP Daihatsu 952cc 3-cyl diesel |
Engine Detail — 952 cc / 58.1 ci Diesel
Manufacturer | Daihatsu D950D |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 952 cc
58.1 ci |
Bore/Stroke | 2.83x3.07 inches
72 x 78 mm |
Power | 26.5 hp
19.8 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Engine Detail — 952 cc / 58.1 ci Gasoline
Manufacturer | Daihatsu D950G |
Fuel Type | Gasoline |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 952 cc
58.1 ci |
Bore/Stroke | 2.83x3.07 inches
72 x 78 mm |
Power | 31 hp
23.1 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Engine Detail — 952 cc / 58.1 ci Diesel
Manufacturer | Daihatsu D950DTH |
Configuration | turbocharged diesel, 3-cylinder, liquid-cooled |
Displacement | 952 cc
58.1 ci |
Bore/Stroke | 2.83x3.07 inches
72 x 78 mm |
Power | 34 hp
25.4 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
Peerless 2600 transaxle. | |
Dimensions
Steiner 428 Tires |
|---|
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
48" front-mount mower deck | |
60" front-mount mower deck | |
72" front-mount mower deck | |
Snowblower | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

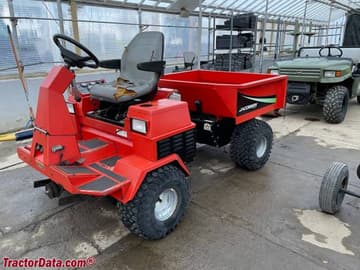

Steiner Utilimax 428, left side.
Steiner Utilimax 428, right side.
