Steyr 30
The Steyr 30 is a tractor produced by Steyr. It is equipped with a 121.5 ci 2.0 L engine. The listed engine power is Diesel (listed): 30 hp / 22.4 kW. Transmission: gear. Operating weight: 3902 lbs 1769 kg.
Engine Power
Diesel (listed): 30 hp / 22.4 kW
Fuel & Capacities
16.4 gal
62.1 L
Transmission
gear
Operating Weight
3902 lbs
1769 kg
Overview
 | 1966 - 1970
Plus SeriesUtility tractor
Plus Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Steyr |
Utility tractor | |
Steyr 30 Engine | |
|---|---|
Steyr 2.0L 2-cyl diesel | |
Fuel tank | 16.4 gal
62.1 L |
Engine details ...  | |
Steyr 30 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Steyr 30 Power | |
|---|---|
Engine | 30 hp
22.4 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Hydraulics | |
|---|---|
Total flow | 4.2 gpm
15.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift | 2426 lbs
1100 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 72.8 inches
184 cm |
Weight | 3902 lbs
1769 kg |
Front tire | 5.50-16 |
Rear tire | 11.2-28 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 121.5 ci / 2.0 L Diesel
Manufacturer | Steyr WD 210.40 |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 121.5 ci
2.0 L |
Bore/Stroke | 4.13x4.53 inches
105 x 115 mm |
Power | 30 hp
22.4 kW |
Rated RPM | 2200 |
Torque | 87 lb-ft
118.0 Nm |
Torque RPM | 1500 |
Transmission
Transmission — gear
Transmission | gear |

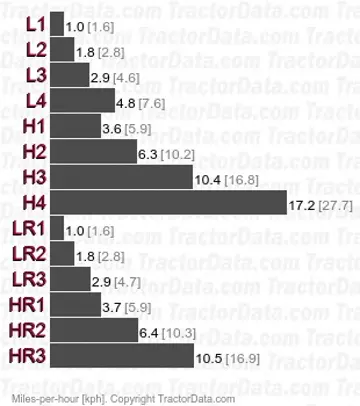

Gears | 8 forward and 6 reverse |
 | |
Dimensions
Steyr 30 Tires | |
|---|---|
Ag front | 5.50-16 |
Ag rear | 11.2-28 |
Dimensions | |
|---|---|
Wheelbase | 72.8 inches
184 cm |
Length | 128 inches
325 cm |
Width | 63.5 inches
161 cm |
Height | 59.5 inches
151 cm |
Weight | 3902 lbs
1769 kg |
Max weight | 5512 lbs
2500 kg |
Front tread | 49.2 inches
124 cm |
Rear tread | 49.2 inches
124 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for Steyr 30 based on its 30 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Steyr 30.
Estimated Continuous Field Runtime: 10.5 hrs
Approximately 10.5 hours of continuous field operation at ~75% rated power on a full tank (16.4 gal / 62.1 L).
Estimated 75% Load Fuel Burn~1.6 gal/hr (5.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Steyr 30 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Steyr 30.
Converted Equivalents:
Horsepower (HP)30 hp
Kilowatts (kW)22.4 kW
Metric Horsepower (PS / CV)30.4 PS
Direct Competitor Comparison
Compare Steyr 30 against same-era industry alternatives in the same horsepower class.
Current Model
Steyr
Steyr 30
Engine Power:Diesel (listed): 30 hp / 22.4 kW
★ Baseline Reference
