Steyr 4110 Multi
The Steyr 4110 Multi is a tractor produced by Steyr. It is equipped with a 207.5 ci 3.4 L engine. The listed engine power is Diesel (gross): 107 hp / 79.8 kW. Transmission: 32 forward and reverse.
Engine Power
Diesel (gross): 107 hp / 79.8 kW
Transmission
32 forward and reverse
Overview
 | 2016 -
Multi SeriesUtility tractor |
|---|---|
2016 - | |
Multi Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Steyr |
Utility tractor | |
Built in Saint Valentin, Austria | |
Steyr 4110 Multi Engine | |
|---|---|
Iveco 3.4L 4-cyl diesel | |
Engine details ...  |
Steyr 4110 Multi Transmission | |
|---|---|
32-speed four-speed power shift | |
Transmission details ...  |
Steyr 4110 Multi Power | |
|---|---|
Engine (gross) | 107 hp
79.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard with air-conditioning. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
Engine
Engine Detail — 207.5 ci / 3.4 L Diesel
Manufacturer | Iveco |
Configuration | turbocharged intercooled diesel, 4-cylinder, liquid-cooled |
Displacement | 207.5 ci
3.4 L |
Bore/Stroke | 3.90x4.33 inches
99 x 110 mm |
Rated Power (gross) | 107 hp
79.8 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 32 forward and reverse four-speed power shift
Type | four-speed power shift |
Gears | 32 forward and reverse |
four gears in four ranges, with an additional two-range shift. | |
Dimensions
Steyr 4110 Multi Tires |
|---|
Dimensions |
|---|
Photos

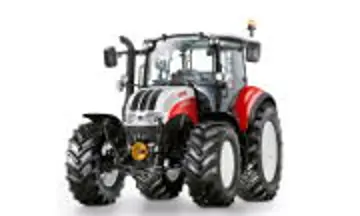

Steyr 4110 Multi tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Steyr 4110 Multi based on its 107 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Steyr 4110 Multi.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Steyr 4110 Multi Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Steyr 4110 Multi.
Converted Equivalents:
Horsepower (HP)107 hp
Kilowatts (kW)79.8 kW
Metric Horsepower (PS / CV)108.5 PS
Direct Competitor Comparison
Compare Steyr 4110 Multi against same-era industry alternatives in the same horsepower class.
Current Model
Steyr
Steyr 4110 Multi
Engine Power:Diesel (gross): 107 hp / 79.8 kW
★ Baseline Reference
