Swaraj 939FE

The Swaraj 939FE is a tractor produced by Swaraj. It is equipped with a 158.2 ci 2.6 L engine. The listed engine power is Diesel (listed): 36 hp / 26.8 kW. Transmission: constant mesh. Drive type: 4x2 2WD. Operating weight: 4,674 lbs 2120 kg.

Overview

Production
Manufacturer	Swaraj
Built in India

Swaraj 939FE Engine
2.6L 3-cyl diesel
Fuel tank	16 gal 60.6 L
Engine details ...

Swaraj 939FE Transmission
8-speed
Transmission details ...

Swaraj 939FE Power
Engine	36 hp 26.8 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD optional
Wet disc brakes

Hydraulics
Pressure	2611 psi 180.0 bar
Valves	2
Total flow	10.83 gpm 41.0 lpm

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/ground
	1000 (4WD)

Dimensions & Tires
Wheelbase	80.12 inches 203 cm
Weight	4,674 lbs 2120 kg
Front tire	6.00-16
Rear tire	12.4R28
Full dimensions and tires ...

Electrical
Charging amps	35
Battery volts	12

Engine

Engine Detail — 158.2 ci / 2.6 L Diesel

Manufacturer	3R860E
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	158.2 ci 2.6 L
Bore/Stroke	3.937x4.331 inches 100 x 110 mm
Power	36 hp 26.8 kW
Rated RPM	2000
Torque	107 lb-ft 145.1 Nm
Torque RPM	1200
Starter volts	12

Transmission

Transmission — constant mesh

Transmission	constant mesh
Gears	8 forward and 2 reverse

Dimensions

Swaraj 939FE Tires
Ag front	6.00-16
	7.5R20 (4WD)
Ag rear	12.4R28

Dimensions
Wheelbase	80.12 inches 203 cm
Length	139.6 inches 354 cm
Width	71.46 inches 181 cm
Height	92.91 inches 235 cm
Weight	4,674 lbs 2120 kg
Ground clearance	11.26 inches 28 cm

Photos

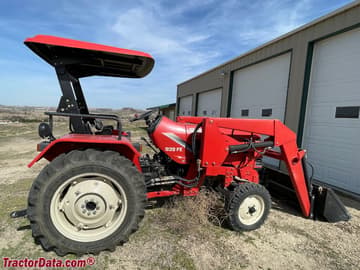

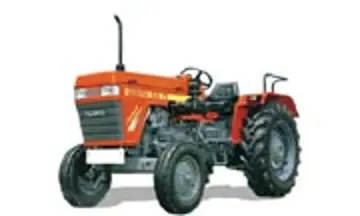

Swaraj 939FE
