Terrion ATM 3180

The Terrion ATM 3180 is a tractor produced by Terrion. It is equipped with a 369.7 ci 6.1 L engine. The listed engine power is Diesel (listed): 180 hp / 134.2 kW. Transmission: Valtra. Operating weight: 14100 lbs 6395 kg.

Engine Power
Diesel (listed): 180 hp / 134.2 kW
Fuel & Capacities
92.5 gal 350.1 L
Transmission
Valtra
Operating Weight
14100 lbs 6395 kg

Overview

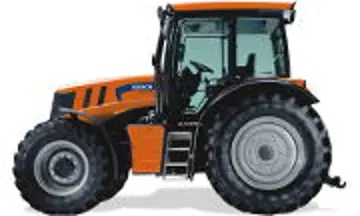

Terrion ATM 3180 tractor photo
2008 - 2012 ATM 3000 SeriesRow-Crop tractor ATM 3000 Series Row-Crop tractor
Production
Manufacturer
Terrion
Row-Crop tractor
Built in Tambov, Russia
Terrion ATM 3180 Engine
Deutz 6.1L 6-cyl diesel
Fuel tank
92.5 gal 350.1 L
Engine details ...
Terrion ATM 3180 Power
Engine
180 hp 134.2 kW
Mechanical
Four-wheel drive
Power steering
Cab standard with air-condtioning.
Hydraulics
Valves
4
Pump flow
20.1 gpm 76.1 lpm
Tractor hitch
Rear Type
III/II
Front Hitch
II OptOptional
Power Take-off (PTO)
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
114.2 inches 290 cm
Weight
14100 lbs 6395 kg
Front tire
16.9R28
Rear tire
20.8R38
Full dimensions and tires ...

Engine

Engine Detail — 369.7 ci / 6.1 L Diesel

Manufacturer
Deutz BF 6M 2012C
Configuration
intercooled turbocharged diesel, 6-cylinder, liquid-cooled
Displacement
369.7 ci 6.1 L
Bore/Stroke
3.98x4.96 inches 101 x 126 mm
Power
180 hp 134.2 kW
Maximum Power
186 hp 138.7 kW
Rated RPM
2200
Starter type
electric

Transmission

Transmission — Valtra

Transmission
Valtra
Gears
369.7 forward and reverse

Dimensions

Terrion ATM 3180 Tires
Ag front
16.9R28
Ag rear
20.8R38
Dimensions
Wheelbase
114.2 inches 290 cm
Length
198.8 inches 504 cm
Width
96.1 inches 244 cm
Height (cab)
122 inches 309 cm
Shipping weight
14100 lbs 6395 kg
Max weight
19840 lbs 8999 kg
Ground clearance
19.7 inches 50 cm

Photos

Terrion ATM 3180 tractor photo

Terrion ATM 3180 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Terrion ATM 3180 based on its 180 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Terrion ATM 3180.

Estimated Continuous Field Runtime: 9.9 hrs

Approximately 9.9 hours of continuous field operation at ~75% rated power on a full tank (92.5 gal / 350.2 L).

Estimated 75% Load Fuel Burn~9.4 gal/hr (35.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Terrion ATM 3180 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Terrion ATM 3180.

Converted Equivalents:

Horsepower (HP)180 hp
Kilowatts (kW)134.2 kW
Metric Horsepower (PS / CV)182.5 PS
