Terrion ATM 4200
The Terrion ATM 4200 is a tractor produced by Terrion. It is equipped with a 369.7 ci 6.1 L engine. The listed engine power is Diesel (listed): 197 hp / 146.9 kW. Transmission: ZF T7232. Operating weight: 14990 lbs 6799 kg.
Engine Power
Diesel (listed): 197 hp / 146.9 kW
Fuel & Capacities
99 gal
374.7 L
Transmission
ZF T7232
Operating Weight
14990 lbs
6799 kg
Overview
 | 2010 -
ATM 4000 SeriesRow-Crop tractor |
|---|---|
2010 - | |
ATM 4000 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Terrion |
Row-Crop tractor | |
Built in Tambov, Russia | |
Terrion ATM 4200 Engine | |
|---|---|
Deutz 6.1L 6-cyl diesel | |
Fuel tank | 99 gal
374.7 L |
Engine details ...  | |
Terrion ATM 4200 Transmission | |
|---|---|
40-speed four-speed power shift | |
Transmission details ...  |
Terrion ATM 4200 Power | |
|---|---|
Engine | 197 hp
146.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Cab standard with air-condtioning. |
Hydraulics | |
|---|---|
Valves | 4 |
Pump flow | 29.1 gpm
110.1 lpm |
39.6 gpmOptOptional
149.9 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III |
Control | position and draft control |
Front Hitch | IIIN OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/540E/1000/1000E |
Front PTO | optional |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 113 inches
287 cm |
Weight | 14990 lbs
6799 kg |
Front tire | 420/85R34 |
Rear tire | 520/85R42 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 369.7 ci / 6.1 L Diesel
Manufacturer | Deutz BF 6M 2012C |
Configuration | intercooled turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 369.7 ci
6.1 L |
Bore/Stroke | 3.98x4.96 inches
101 x 126 mm |
Power | 197 hp
146.9 kW |
Rated RPM | 2200 |
Starter type | electric |
Transmission
Transmission — ZF T7232
Transmission | ZF T7232 |
Type | four-speed power shift |
Gears | 40 forward and reverse |
Dimensions
Terrion ATM 4200 Tires | |
|---|---|
Ag front | 420/85R34 |
Ag rear | 520/85R42 |
Dimensions | |
|---|---|
Wheelbase | 113 inches
287 cm |
Length | 192.2 inches
488 cm |
Width | 96.1 inches
244 cm |
Height (cab) | 129.9 inches
329 cm |
Shipping weight | 14990 lbs
6799 kg |
Max weight | 24250 lbs
10999 kg |
Ground clearance | 23.6 inches
59 cm |
Photos

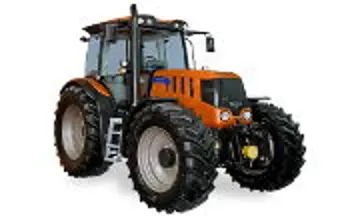

Terrion ATM 4200 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Terrion ATM 4200 based on its 197 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Terrion ATM 4200.
Estimated Continuous Field Runtime: 9.7 hrs
Approximately 9.7 hours of continuous field operation at ~75% rated power on a full tank (99 gal / 374.8 L).
Estimated 75% Load Fuel Burn~10.2 gal/hr (38.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Terrion ATM 4200 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Terrion ATM 4200.
Converted Equivalents:
Horsepower (HP)197 hp
Kilowatts (kW)146.9 kW
Metric Horsepower (PS / CV)199.7 PS
