Terrion ATM 4160
The Terrion ATM 4160 is a tractor produced by Terrion. It is equipped with a 369.7 ci 6.1 L engine. The listed engine power is Diesel (listed): 163 hp / 121.5 kW. Transmission: ZF. Operating weight: 14770 lbs 6699 kg.
Engine Power
Diesel (listed): 163 hp / 121.5 kW
Fuel & Capacities
105.7 gal
400.1 L
Transmission
ZF
Operating Weight
14770 lbs
6699 kg
Overview
 | 2010 -
ATM 4000 SeriesRow-Crop tractor |
|---|---|
2010 - | |
ATM 4000 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Terrion |
Row-Crop tractor | |
Built in Tambov, Russia | |
Terrion ATM 4160 Engine | |
|---|---|
Deutz 6.1L 6-cyl diesel | |
Fuel tank | 105.7 gal
400.1 L |
Engine details ...  | |
Terrion ATM 4160 Transmission | |
|---|---|
40-speed four-speed power shift | |
Transmission details ...  |
Terrion ATM 4160 Power | |
|---|---|
Engine | 163 hp
121.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Cab standard with air-condtioning. |
Hydraulics | |
|---|---|
Valves | 4 |
Pump flow | 29.1 gpm
110.1 lpm |
38.3 gpmOptOptional
145.0 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III |
Rear lift | 20680 lbs
9380 kg |
Front Hitch | IIIN OptOptional |
Front lift | 8543 lbs
3875 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/750/1000 |
Front PTO | optional |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 113 inches
287 cm |
Weight | 14770 lbs
6699 kg |
Front tire | 540/65R34 |
Rear tire | 650/65R42 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 369.7 ci / 6.1 L Diesel
Configuration | intercooled turbocharged diesel, 6-cylinder, liquid-cooled |
Deutz TCD 2012 L06 2V | |
Displacement | 369.7 ci
6.1 L |
Bore/Stroke | 3.98x4.96 inches
101 x 126 mm |
Power | 163 hp
121.5 kW |
Maximum Power | 170 hp
126.8 kW |
Rated RPM | 2100 |
Starter type | electric |
Transmission
Transmission — ZF
Transmission | ZF |
Type | four-speed power shift |
Gears | 40 forward and reverse |
Dimensions
Terrion ATM 4160 Tires | |
|---|---|
Ag front | 540/65R34 |
Ag rear | 650/65R42 |
Dimensions | |
|---|---|
Wheelbase | 113 inches
287 cm |
Length | 192.9 inches
489 cm |
Width | 94.5 inches
240 cm |
Height (cab) | 129.9 inches
329 cm |
Shipping weight | 14770 lbs
6699 kg |
Max weight | 24250 lbs
10999 kg |
Ground clearance | 23.6 inches
59 cm |
Photos

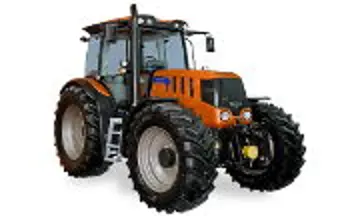

Terrion ATM 4160 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Terrion ATM 4160 based on its 163 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Terrion ATM 4160.
Estimated Continuous Field Runtime: 12.5 hrs
Approximately 12.5 hours of continuous field operation at ~75% rated power on a full tank (105.7 gal / 400.1 L).
Estimated 75% Load Fuel Burn~8.5 gal/hr (32.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Terrion ATM 4160 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Terrion ATM 4160.
Converted Equivalents:
Horsepower (HP)163 hp
Kilowatts (kW)121.5 kW
Metric Horsepower (PS / CV)165.3 PS
