Terrion ATM 3180M

The Terrion ATM 3180M is a tractor produced by Terrion. It is equipped with a 369.7 ci 6.1 L engine. The listed engine power is Diesel (listed): 182 hp / 135.7 kW. Transmission: ZF T7229.

Engine Power

Diesel (listed): 182 hp / 135.7 kW

Fuel & Capacities

99 gal 374.7 L

Transmission

ZF T7229

Overview

	2013 - ATM 3000 SeriesRow-Crop tractor
2013 -
ATM 3000 Series
Row-Crop tractor

Production
Manufacturer	Terrion
Row-Crop tractor
Built in Tambov, Russia

Terrion ATM 3180M Engine
Deutz 6.1L 6-cyl diesel
Fuel tank	99 gal 374.7 L
Engine details ...

Terrion ATM 3180M Transmission
24-speed four-speed power shift
Transmission details ...

Terrion ATM 3180M Power
Engine	182 hp 135.7 kW

Mechanical
Four-wheel drive
Power steering
Cab standard with air-condtioning.

Hydraulics
Valves	4
Pump flow	19.8 gpm 74.9 lpm

Tractor hitch
Rear Type	III
Control	position and draft control
Front Hitch	IIIN OptOptional

Power Take-off (PTO)
Rear PTO Type	540/540E/1000/1000E
Front PTO	optional

Dimensions & Tires
Front tire	420/85R30
Rear tire	520/85R38
Full dimensions and tires ...

Engine

Engine Detail — 369.7 ci / 6.1 L Diesel

Manufacturer	Deutz BF 6M 2012C
Configuration	intercooled turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	369.7 ci 6.1 L
Bore/Stroke	3.98x4.96 inches 101 x 126 mm
Power	182 hp 135.7 kW
Rated RPM	2200
Starter type	electric

Transmission

Transmission — ZF T7229

Transmission	ZF T7229
Type	four-speed power shift
Gears	24 forward and reverse

Dimensions

Terrion ATM 3180M Tires
Ag front	420/85R30
Ag rear	520/85R38

Dimensions

Photos

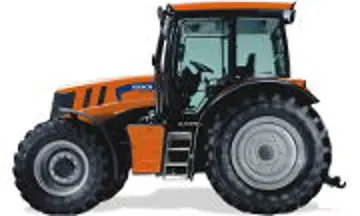

Terrion ATM 3180M tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Terrion ATM 3180M based on its 182 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Terrion ATM 3180M.

Estimated Continuous Field Runtime: 10.5 hrs

Approximately 10.5 hours of continuous field operation at ~75% rated power on a full tank (99 gal / 374.8 L).

Estimated 75% Load Fuel Burn~9.5 gal/hr (35.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
