Terrion ATM 5280
The Terrion ATM 5280 is a tractor produced by Terrion. It is equipped with a 436 ci 7.1 L engine. The listed engine power is Diesel (listed): 275 hp / 205.1 kW. Transmission: ZF T7336. Operating weight: 20280 lbs 9199 kg.
Engine Power
Diesel (listed): 275 hp / 205.1 kW
Fuel & Capacities
132.1 gal
500.0 L
Transmission
ZF T7336
Operating Weight
20280 lbs
9199 kg
Overview
 | 2008 - ????
ATM 5000 SeriesRow-Crop tractor |
|---|---|
2008 - ???? | |
ATM 5000 Series | |
Row-Crop tractor | |
2008 - ???? | |
|---|---|
ATM 5000 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Terrion |
Row-Crop tractor | |
Built in Tambov, Russia | |
Terrion ATM 5280 Engine | |
|---|---|
Deutz 7.1L 6-cyl diesel | |
Fuel tank | 132.1 gal
500.0 L |
Engine details ...  | |
Terrion ATM 5280 Transmission | |
|---|---|
40-speed four-speed power shift | |
Transmission details ...  |
Terrion ATM 5280 Power | |
|---|---|
Engine | 275 hp
205.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Cab standard with air-condtioning. |
Hydraulics | |
|---|---|
Valves | 5 |
Pump flow | 29.1 gpm
110.1 lpm |
39.6 gpmOptOptional
149.9 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III |
Control | position and draft control |
Rear lift | 23600 lbs
10704 kg |
Front Hitch | IIIN OptOptional |
Front lift | 12140 lbs
5506 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540E/1000 |
Front PTO | optional |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 120.9 inches
307 cm |
Weight | 20280 lbs
9199 kg |
Front tire | 600/65R38 |
Rear tire | 710/70R42 |
Full dimensions and tires ...  | |
Engine
| 2008 - ????
ATM 5000 SeriesRow-Crop tractor |
|---|---|
2008 - ???? | |
ATM 5000 Series | |
Row-Crop tractor | |
2008 - ???? | |
|---|---|
ATM 5000 Series | |
Row-Crop tractor |
Engine Detail — 436 ci / 7.1 L Diesel
Manufacturer | Deutz BF 6M1013FC |
Configuration | intercooled turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 436 ci
7.1 L |
Bore/Stroke | 4.25x5.12 inches
108 x 130 mm |
Power | 275 hp
205.1 kW |
Maximum Power | 284 hp
211.8 kW |
Rated RPM | 2200 |
Starter type | electric |
Transmission
| 2008 - ????
ATM 5000 SeriesRow-Crop tractor |
|---|---|
2008 - ???? | |
ATM 5000 Series | |
Row-Crop tractor | |
2008 - ???? | |
|---|---|
ATM 5000 Series | |
Row-Crop tractor |
Transmission — ZF T7336
Transmission | ZF T7336 |
Type | four-speed power shift |
Gears | 40 forward and reverse |
Dimensions
| 2008 - ????
ATM 5000 SeriesRow-Crop tractor |
|---|---|
2008 - ???? | |
ATM 5000 Series | |
Row-Crop tractor | |
2008 - ???? | |
|---|---|
ATM 5000 Series | |
Row-Crop tractor |
Terrion ATM 5280 Tires | |
|---|---|
Ag front | 600/65R38 |
Ag rear | 710/70R42 |
Dimensions | |
|---|---|
Wheelbase | 120.9 inches
307 cm |
Length | 200.8 inches
510 cm |
Width | 98.4 inches
249 cm |
Height (cab) | 131.9 inches
335 cm |
Shipping weight | 20280 lbs
9199 kg |
Max weight | 30860 lbs
13998 kg |
Ground clearance | 25.6 inches
65 cm |
Photos

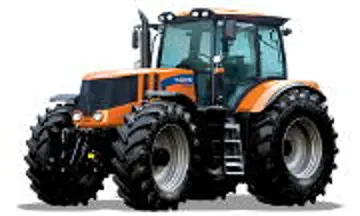

Terrion ATM 5280 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Terrion ATM 5280 based on its 275 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Terrion ATM 5280.
Estimated Continuous Field Runtime: 9.2 hrs
Approximately 9.2 hours of continuous field operation at ~75% rated power on a full tank (132.1 gal / 500.1 L).
Estimated 75% Load Fuel Burn~14.3 gal/hr (54.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Terrion ATM 5280 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Terrion ATM 5280.
Converted Equivalents:
Horsepower (HP)275 hp
Kilowatts (kW)205.1 kW
Metric Horsepower (PS / CV)278.8 PS
