Terrion ATM 7360
The Terrion ATM 7360 is a tractor produced by Terrion. It is equipped with a 436 ci 7.1 L engine. The listed engine power is Diesel (listed): 350 hp / 261.0 kW. Transmission: ZF ECCOM 5. Operating weight: 25350 lbs 11498 kg.
Engine Power
Diesel (listed): 350 hp / 261.0 kW
Fuel & Capacities
184.9 gal
699.8 L
Transmission
ZF ECCOM 5
Operating Weight
25350 lbs
11498 kg
Overview
 | 2010 -
ATM 7000 SeriesRow-Crop tractor |
|---|---|
2010 - | |
ATM 7000 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Terrion |
Row-Crop tractor | |
Built in Tambov, Russia | |
Terrion ATM 7360 Engine | |
|---|---|
Deutz 7.1L 6-cyl diesel | |
Fuel tank | 184.9 gal
699.8 L |
Engine details ...  | |
Terrion ATM 7360 Transmission | |
|---|---|
continuously variable transmission (CVT) | |
Transmission details ...  |
Terrion ATM 7360 Power | |
|---|---|
Engine | 350 hp
261.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Cab standard with air-condtioning. |
Hydraulics | |
|---|---|
Valves | 5 |
Pump flow | 39.6 gpm
149.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | IV |
Control | position and draft control |
Front Hitch | IIIN OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540E/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 122.4 inches
310 cm |
Weight | 25350 lbs
11498 kg |
Front tire | 600/65R34 |
Rear tire | 710/70R42 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 436 ci / 7.1 L Diesel
Configuration | intercooled turbocharged diesel, 6-cylinder, liquid-cooled |
Deutz TCD 2013 L06 4V | |
Displacement | 436 ci
7.1 L |
Bore/Stroke | 4.25x5.12 inches
108 x 130 mm |
Power | 350 hp
261.0 kW |
Maximum Power | 365 hp
272.2 kW |
Rated RPM | 2200 |
Starter type | electric |
Transmission
Transmission — ZF ECCOM 5
Transmission | ZF ECCOM 5 |
Type | continuously variable transmission (CVT) |
Gears | infinite forward and reverse |
Dimensions
Terrion ATM 7360 Tires | |
|---|---|
Ag front | 600/65R34 |
Ag rear | 710/70R42 |
Dimensions | |
|---|---|
Wheelbase | 122.4 inches
310 cm |
Length | 224.4 inches
569 cm |
Width | 98.4 inches
249 cm |
Height (cab) | 133.1 inches
338 cm |
Shipping weight | 25350 lbs
11498 kg |
Max weight | 41890 lbs
19001 kg |
Ground clearance | 23.6 inches
59 cm |
Photos

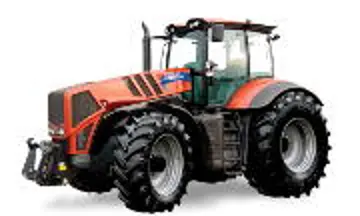

Terrion ATM 7360 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Terrion ATM 7360 based on its 350 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Terrion ATM 7360.
Estimated Continuous Field Runtime: 10.2 hrs
Approximately 10.2 hours of continuous field operation at ~75% rated power on a full tank (184.9 gal / 699.9 L).
Estimated 75% Load Fuel Burn~18.2 gal/hr (68.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Terrion ATM 7360 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Terrion ATM 7360.
Converted Equivalents:
Horsepower (HP)350 hp
Kilowatts (kW)261 kW
Metric Horsepower (PS / CV)354.9 PS
