Terrion ATM 7400

The Terrion ATM 7400 is a tractor produced by Terrion. The listed engine power is Diesel (listed): 394 hp / 293.8 kW. Transmission: ZF ECCOM 5. Operating weight: 26460 lbs 12002 kg.

Engine Power
Diesel (listed): 394 hp / 293.8 kW
Fuel & Capacities
Diesel
Transmission
ZF ECCOM 5
Operating Weight
26460 lbs 12002 kg

Overview

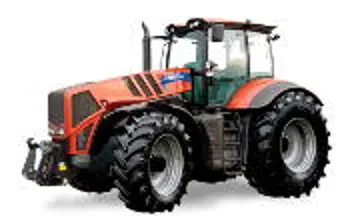

Terrion ATM 7400 tractor photo
2010 - ATM 7000 SeriesRow-Crop tractor
2010 -
ATM 7000 Series
Row-Crop tractor
Production
Manufacturer
Terrion
Row-Crop tractor
Built in Tambov, Russia
Terrion ATM 7400 Engine
Deutz 6-cyl diesel
Engine details ...
Terrion ATM 7400 Transmission
continuously variable transmission (CVT)
Transmission details ...
Terrion ATM 7400 Power
Engine
394 hp 293.8 kW
Mechanical
Four-wheel drive
Power steering
Cab standard with air-condtioning.
Hydraulics
Valves
4 to 5
Pump flow
39.6 gpm 149.9 lpm
Tractor hitch
Rear Type
IVN/III
Front Hitch
IIIN OptOptional
Power Take-off (PTO)
Rear PTO Type
1000
Dimensions & Tires
Wheelbase
122.4 inches 310 cm
Weight
26460 lbs 12002 kg
Front tire
650/65R38
Rear tire
710/75R42
Full dimensions and tires ...

Engine

Engine Detail — Diesel

Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Deutz TCD 2013 L06 4V
Power
394 hp 293.8 kW
Maximum Power
410 hp 305.7 kW
Rated RPM
2000
Starter type
electric

Transmission

Transmission — ZF ECCOM 5

Transmission
ZF ECCOM 5
Type
continuously variable transmission (CVT)
Gears
infinite forward and reverse

Dimensions

Terrion ATM 7400 Tires
Ag front
650/65R38
Ag rear
710/75R42
Dimensions
Wheelbase
122.4 inches 310 cm
Length
224.4 inches 569 cm
Width
98.4 inches 249 cm
Height (cab)
133.1 inches 338 cm
Shipping weight
26460 lbs 12002 kg
Max weight
48500 lbs 21999 kg
Ground clearance
23.6 inches 59 cm

Photos

Terrion ATM 7400 tractor photo

Terrion ATM 7400 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Terrion ATM 7400 based on its 394 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁Commercial / Field ScaleHigh horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙Commercial / Field ScaleBroad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Terrion ATM 7400.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Terrion ATM 7400 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Terrion ATM 7400.

Converted Equivalents:

Horsepower (HP)394 hp
Kilowatts (kW)293.8 kW
Metric Horsepower (PS / CV)399.5 PS

Direct Competitor Comparison

Compare Terrion ATM 7400 against same-era industry alternatives in the same horsepower class.

Current Model
Terrion

Terrion ATM 7400

Engine Power:Diesel (listed): 394 hp / 293.8 kW
★ Baseline Reference
FendtMarket Competitor

Fendt 936 Vario

Engine Power:355
Production Years:2006 - 2026
View Full Specs→
DeereMarket Competitor

Deere 8360R

Engine Power:360
Production Years:2011 - 2013
View Full Specs→
CaseIHMarket Competitor

CaseIH 9370

Engine Power:360
Production Years:1996 - 1999
View Full Specs→
New HollandMarket Competitor

New Holland 9682

Engine Power:360
Production Years:1996 - 2000
