Toro 17-44ZX 74502
The Toro 17-44ZX 74502 is a tractor produced by Toro Lawn Tractors. It is equipped with a 501 cc 30.6 ci engine. The rated power output is 16.5 hp 12.3 kW. Transmission: Hydro-Gear IZT.
Engine Power
16.5 hp
12.3 kW
Fuel & Capacities
5 gal
18.9 L
Transmission
Hydro-Gear IZT
Toro Lawn Tractors Toro 17-44ZX 74502 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2003
TimeCutter ZX SeriesZero-turn mower |
|---|---|
2003 | |
TimeCutter ZX Series | |
Zero-turn mower | |
2003 | |
|---|---|
TimeCutter ZX Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Toro |
Zero-turn mower | |
Original price was $4,599 in 2003 | |
Toro 17-44ZX Engine | |
|---|---|
16.5HP Briggs & Stratton 501cc 1-cyl gasoline | |
Fuel tank | 5 gal
18.9 L |
Engine details ...  | |
Toro 17-44ZX Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 10x4 |
Rear tire | 18x8-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
| 2003
TimeCutter ZX SeriesZero-turn mower |
|---|---|
2003 | |
TimeCutter ZX Series | |
Zero-turn mower | |
2003 | |
|---|---|
TimeCutter ZX Series | |
Zero-turn mower |
Engine Detail — 501 cc / 30.6 ci Gasoline
Manufacturer | Briggs & Stratton 31F777 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 501 cc
30.6 ci |
Bore/Stroke | 3.56x3.062 inches
90 x 78 mm |
Power (gross) | 16.5 hp
12.3 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2003
TimeCutter ZX SeriesZero-turn mower |
|---|---|
2003 | |
TimeCutter ZX Series | |
Zero-turn mower | |
2003 | |
|---|---|
TimeCutter ZX Series | |
Zero-turn mower |
Transmission — Hydro-Gear IZT
Transmission | Hydro-Gear IZT |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2003
TimeCutter ZX SeriesZero-turn mower |
|---|---|
2003 | |
TimeCutter ZX Series | |
Zero-turn mower | |
2003 | |
|---|---|
TimeCutter ZX Series | |
Zero-turn mower |
Toro 17-44ZX Tires | |
|---|---|
Lawn/turf front | 10x4 |
Lawn/turf rear | 18x8-10 |
Dimensions | |
|---|---|
Front axle | Caster |
Attachments
| 2003
TimeCutter ZX SeriesZero-turn mower |
|---|---|
2003 | |
TimeCutter ZX Series | |
Zero-turn mower | |
2003 | |
|---|---|
TimeCutter ZX Series | |
Zero-turn mower |
44" Mower deck | |
|---|---|
Type | mid-mount Toro |
3-blade with manual lift | |
Cutting width | 44 inches
111 cm |
Photos

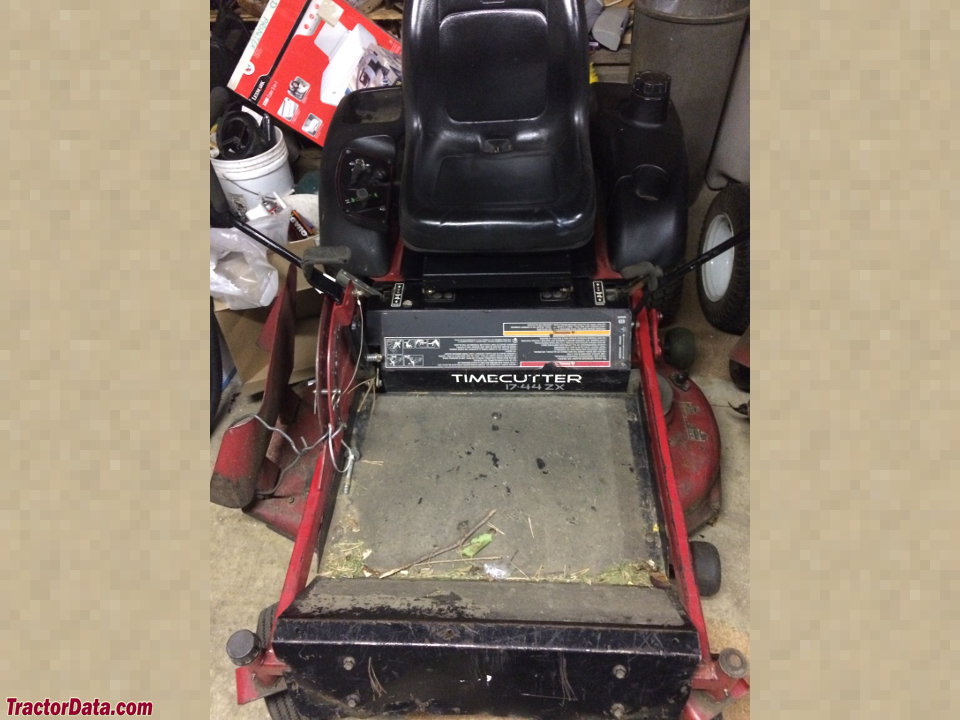

Toro 17-44ZX 74502
