Twin City 16-30
The Twin City 16-30 is a tractor produced by Twin City. It is equipped with a 589 ci 9.7 L engine. Transmission: 1 forward and reverse. Operating weight: 7800 lbs 3538 kg.
Fuel & Capacities
Kerosene
Transmission
1 forward and reverse
Operating Weight
7800 lbs
3538 kg
Twin City 16-30 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1918 - 1920
Standard-tread tractor |
|---|---|
1918 - 1920 | |
Standard-tread tractor | |
Production | |
|---|---|
Manufacturer | Twin City |
Standard-tread tractor | |
Built in Minneapolis, Minnesota, USA | |
Total built | 702 |
Twin City 16-30 Engine | |
|---|---|
9.7L 4-cyl kerosene | |
Engine details ...  |
Twin City 16-30 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
Twin City 16-30 Power | |
|---|---|
Drawbar (claimed) | 16 hp
11.9 kW |
Belt (claimed) | 30 hp
22.4 kW |
Plows | 3 (14-inch) |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 7800 lbs
3538 kg |
Rear tire | 54x12 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Twin City Kerosene Tractors published in 1918, by Minneapolis Steel and Machinery |
Engine

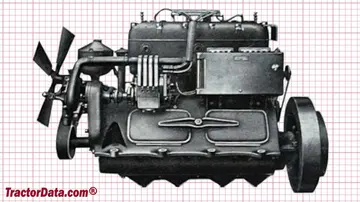

Engine Detail — 589 ci / 9.7 L Kerosene
Fuel Type | Kerosene |
Configuration | 4-cylinder, liquid-cooled inline |
Displacement | 589 ci
9.7 L |
Bore/Stroke | 5.00x7.50 inches
127 x 190 mm |
Twin City 16-30 Engine | |
|---|---|
 |
Transmission
Transmission — 1 forward and reverse gear
Type | gear |
Gears | 1 forward and reverse |
Dimensions
Twin City 16-30 Tires | |
|---|---|
Ag rear | 54x12 steel |
Dimensions | |
|---|---|
Length | 179 inches
454 cm |
Width | 70 inches
177 cm |
Height | 72 inches
182 cm |
Weight | 7800 lbs
3538 kg |
