TYM T1054
The TYM T1054 is a tractor produced by Tym. It is equipped with a 208 ci 3.4 L engine. The listed engine power is Diesel (gross): 104.6 hp / 78.0 kW. Transmission: 12 forward and reverse. Operating weight: 8688 lbs 3940 kg.
Engine Power
Diesel (gross): 104.6 hp / 78.0 kW
Fuel & Capacities
29.1 gal
110.1 L
Transmission
12 forward and reverse
Operating Weight
8688 lbs
3940 kg
Overview
![]() | 2015 -
Utility tractor |
|---|---|
2015 - | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | TYM |
Utility tractor | |
Variants | |
|---|---|
T1054 SC | 12-speed |
T1054 SP | 32-speed |
TYM T1054 Engine | |
|---|---|
Doosan Infracore 3.4L 4-cyl diesel | |
Fuel tank | 29.1 gal
110.1 L |
Exhaust fluid (DEF) | 5.3 gal
20.1 L |
Engine details ... | |
TYM T1054 Power | |
|---|---|
Engine (gross) | 104.6 hp
78.0 kW |
PTO (claimed) | 95.5 hp
71.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
Valves | 3 |
Pump flow | 15.6 gpm
59.0 lpm |
Total flow | 22.7 gpm
85.9 lpm |
Steering flow | 7.1 gpm
26.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at ends) | 6860 lbs
3111 kg |
9568 lbsOptOptional
4340 kg | |
Rear lift (at 24"/610mm) | 5490 lbs
2490 kg |
6490 lbsOptOptional
2943 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/750/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Weight | 8688 lbs
3940 kg |
Front tire | 13.6-24 |
Rear tire | 16.9-34 |
Full dimensions and tires ... | |

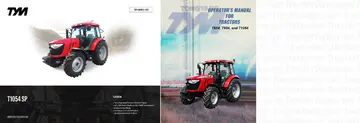

References | |
|---|---|
![]() | |
T1054 SP published in 2015, by TYM | |
Operator's Manual for Tractor T854, T954 and T1054 |
Engine
Engine Detail — 208 ci / 3.4 L Diesel
Manufacturer | Doosan Infracore DL03-LEA04 |
Configuration | turbocharged diesel, 4-cylinder 16-valve, liquid-cooled inline |
Displacement | 208 ci
3.4 L |
Bore/Stroke | 3.86x4.45 inches
98 x 113 mm |
Emissions | Tier IV |
Power (gross) | 104.6 hp
78.0 kW |
Fuel system | common rail direct injection |
Air cleaner | dry |
Rated RPM | 2300 |
Torque | 317.2 lb-ft
430.1 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
32-speed two-speed power shift | |
12-speed power shuttle |

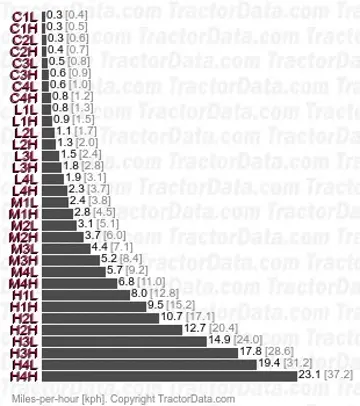

Transmission — 32 forward and reverse two-speed power shift
Type | two-speed power shift |
Gears | 32 forward and reverse |
Clutch | wet disc |
Four synchronized gears (1-4) in four ranges with two-speed push-button power shift. Left-hand power shuttle. Tractor must be stopped, and clutch used, to shift range. | |
![]() | |
Transmission — 12 forward and reverse power shuttle
Type | power shuttle |
Gears | 12 forward and reverse |
Clutch | dry disc |
Four synchronized gears in four ranges with left-hand power shuttle. Tractor must be stopped, and clutch used, to shift range. | |
![]() | |
Dimensions
TYM T1054 Tires | |
|---|---|
Standard tires (ag) | Front: 13.6-24. Rear: 16.9-34 |
Dimensions | |
|---|---|
Length | 177.2 inches
450 cm |
Width | 86 inches
218 cm |
Height | 107.9 inches
274 cm |
Weight | 8688 lbs
3940 kg |
Ground clearance | 18.3 inches
46 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T1054 based on its 104.6 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T1054.
Estimated Continuous Field Runtime: 5.4 hrs
Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (29.1 gal / 110.2 L).
Estimated 75% Load Fuel Burn~5.4 gal/hr (20.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T1054 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T1054.
Converted Equivalents:
Horsepower (HP)104.6 hp
Kilowatts (kW)78 kW
Metric Horsepower (PS / CV)106.1 PS
Direct Competitor Comparison
Compare TYM T1054 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM T1054
Engine Power:Diesel (gross): 104.6 hp / 78.0 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 886
Engine Power:94.4
Production Years:1976 - 1981
