TYM T854

The TYM T854 is a tractor produced by Tym. It is equipped with a 208 ci 3.4 L engine. The listed engine power is Diesel (gross): 84.5 hp / 63.0 kW. Transmission: 32 forward and reverse. Operating weight: 8688 lbs 3940 kg.

Engine Power
Diesel (gross): 84.5 hp / 63.0 kW
Fuel & Capacities
29.1 gal 110.1 L
Transmission
32 forward and reverse
Operating Weight
8688 lbs 3940 kg

Overview

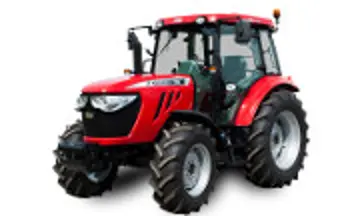

TYM T854 tractor photo
2015 - Utility tractor
2015 -
Utility tractor
Production
Manufacturer
TYM
Utility tractor
TYM T854 Engine
Doosan Infracore 3.4L 4-cyl diesel
Fuel tank
29.1 gal 110.1 L
Exhaust fluid (DEF)
5.3 gal 20.1 L
Engine details ...
TYM T854 Transmission
32-speed two-speed power shift
Transmission details ...
TYM T854 Power
Engine (gross)
84.5 hp 63.0 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning.
Hydraulics
Type
open center
Tractor hitch
Rear Type
II
Control
position and draft control
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/750/1000 (1.375)
Dimensions & Tires
Weight
8688 lbs 3940 kg
Front tire
13.6-24
Rear tire
16.9-34
Full dimensions and tires ...
References
T854 references literature
Operator's Manual for Tractor T854, T954 and T1054

Engine

Engine Detail — 208 ci / 3.4 L Diesel

Manufacturer
Doosan Infracore DL03-LEA06
Configuration
turbocharged diesel, 4-cylinder inline-valve, liquid-cooled 16
Displacement
208 ci 3.4 L
Bore/Stroke
3.86x4.45 inches 98 x 113 mm
Power (gross)
84.5 hp 63.0 kW
Air cleaner
dry
Rated RPM
2300
Torque
272.9 lb-ft 370.1 Nm
Torque RPM
1400
Starter
electric
Starter volts
12

Transmission

Transmission — 32 forward and reverse two-speed power shift

Type
two-speed power shift
Gears
32 forward and reverse
Clutch
dry disc
Four synchronized gears (1-4) in four ranges with two-speed push-button power shift. Left-hand power shuttle. Tractor must be stopped, and clutch used, to shift range.

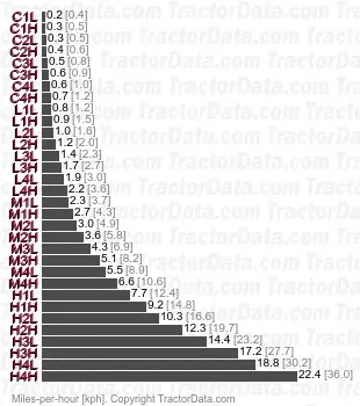

T854  two-speed power shift speeds

Dimensions

TYM T854 Tires
Standard tires (ag)
Front: 13.6-24. Rear: 16.9-34
Dimensions
Length
177.2 inches 450 cm
Height
107.9 inches 274 cm
Weight
8688 lbs 3940 kg
Ground clearance
18.3 inches 46 cm

Photos

TYM T854 tractor photo

TYM T854 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Tym T854 based on its 84.5 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
3 to 4 Bottom (16")3 - 4 铧 (40 cm)Heavy DutySuitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing
7 to 8 ft (84-96 in)2.1 - 2.4 mHeavy DutyHeavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep
78 to 84 in200 - 215 cmHeavy DutyHeavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage
10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙Heavy DutyAggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage
4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机Heavy DutySilage and dry hay; 540 RPM PTO with slip-clutch.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T854.

Estimated Continuous Field Runtime: 6.6 hrs

Approximately 6.6 hours of continuous field operation at ~75% rated power on a full tank (29.1 gal / 110.2 L).

Estimated 75% Load Fuel Burn~4.4 gal/hr (16.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym T854 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T854.

Converted Equivalents:

Horsepower (HP)84.5 hp
Kilowatts (kW)63 kW
Metric Horsepower (PS / CV)85.7 PS
