TYM T954

The TYM T954 is a tractor produced by Tym. It is equipped with a 208 ci 3.4 L engine. The listed engine power is Diesel (gross): 92.5 hp / 69.0 kW. Transmission: 12 forward and reverse. Operating weight: 8688 lbs 3940 kg.

Overview

	2015 - Utility tractor
2015 -
Utility tractor

Production
Manufacturer	TYM
Utility tractor

Variants
T954 SC	12-speed
T954 SP	32-speed

TYM T954 Engine
Doosan Infracore 3.4L 4-cyl diesel
Fuel tank	29.1 gal 110.1 L
Exhaust fluid (DEF)	5.3 gal 20.1 L
Engine details ...

TYM T954 Power
Engine (gross)	92.5 hp 69.0 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	open center

Tractor hitch
Rear Type	II
Control	position and draft control

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/750/1000 (1.375)

Dimensions & Tires
Weight	8688 lbs 3940 kg
Front tire	13.6-24
Rear tire	16.9-34
Full dimensions and tires ...

References
Operator's Manual for Tractor T854, T954 and T1054

Engine

Engine Detail — 208 ci / 3.4 L Diesel

Manufacturer	Doosan Infracore DL03-LEA05
Configuration	turbocharged diesel, 4-cylinder 16-valve, liquid-cooled inline
Displacement	208 ci 3.4 L
Bore/Stroke	3.86x4.45 inches 98 x 113 mm
Power (gross)	92.5 hp 69.0 kW
Air cleaner	dry
Rated RPM	2300
Torque	295 lb-ft 400.0 Nm
Torque RPM	1400
Starter	electric
Starter volts	12

Transmission

Transmission options
32-speed two-speed power shift
12-speed power shuttle

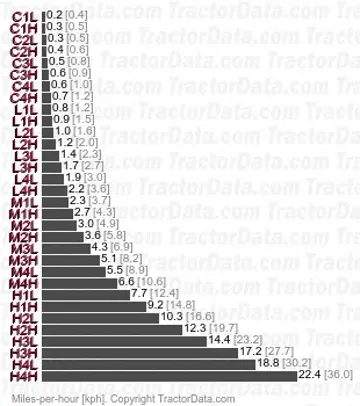

Transmission — 32 forward and reverse two-speed power shift

Type	two-speed power shift
Gears	32 forward and reverse
Clutch	dry disc
Four synchronized gears (1-4) in four ranges with two-speed push-button power shift. Left-hand power shuttle. Tractor must be stopped, and clutch used, to shift range.

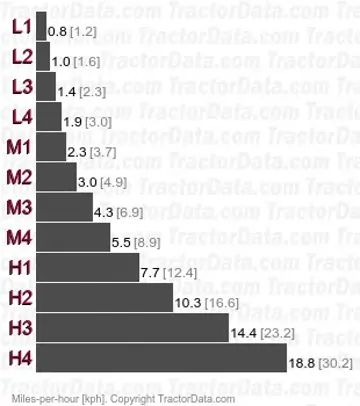

Transmission — 12 forward and reverse power shuttle

Type	power shuttle
Gears	12 forward and reverse
Clutch	dry disc
Four synchronized gears in four ranges with left-hand power shuttle. Tractor must be stopped, and clutch used, to shift range.

Dimensions

TYM T954 Tires
Standard tires (ag)	Front: 13.6-24. Rear: 16.9-34

Dimensions
Length	177.2 inches 450 cm
Height	107.9 inches 274 cm
Weight	8688 lbs 3940 kg
Ground clearance	18.3 inches 46 cm

Photos

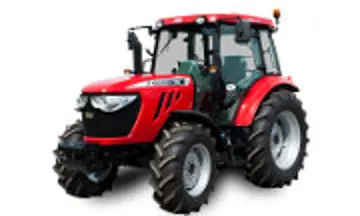

TYM T954 tractor photo
