TYM T903

The TYM T903 is a tractor produced by Tym. It is equipped with a 268.4 ci 4.4 L engine. The listed engine power is Diesel (gross): 91 hp / 67.9 kW. Transmission: 12 forward and reverse. Operating weight: 8124 lbs 3685 kg.

Overview

	2009 - ???? Utility tractor
2009 - ????
Utility tractor

2009 - ????
Utility tractor

Production
Manufacturer	TYM
Utility tractor

Variants
T903S	12-speed

TYM T903 Engine
Perkins 4.4L 4-cyl diesel
Engine details ...

TYM T903 Power
Engine (gross)	91 hp 67.9 kW
PTO (claimed)	78.7 hp 58.7 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Wet disc brakes
Cab standard with heat and air-conditioning.

Capacity
Fuel	33.28 gal 126.0 L
Hydraulic system	19.8 gal 74.9 L
Front axle	18.5 qts 17.5 L

Hydraulics
Type	dual gear pump
Capacity	19.8 gal 74.9 L
Valves	3
Pump flow	15.1 gpm 57.2 lpm
Total flow	22 gpm 83.3 lpm
Steering flow	6.9 gpm 26.1 lpm

Tractor hitch
Rear Type	2
Control	position and draft control
Rear lift (at ends)	6860 lbs 3111 kg
Rear lift (at 24"/610mm)	5490 lbs 2490 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/750/1000 (1.375)
	540/1000 (1.375 T903S)

Dimensions & Tires
Wheelbase	90.55 inches 229 cm
Weight	8069 to 8124 pounds
Front tire	13.6-24
Rear tire	16.9-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	80
Charging volts	12
Battery volts	12

References
Operator's Manual LT900 Self Leveling Type Front Loader (FT409-MES00-05) published in 2009

Engine

	2009 - ???? Utility tractor
2009 - ????
Utility tractor

2009 - ????
Utility tractor

Engine Detail — 268.4 ci / 4.4 L Diesel

Manufacturer	Perkins 3054C-DIT
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Depending on market, this engine is also branded as a Perkins 1104D-44TA.
Displacement	268.4 ci 4.4 L
Power (gross)	91 hp 67.9 kW
Fuel system	direct injection
Air cleaner	dual dry element
Rated RPM	2200
Starter volts	12
Oil capacity	6.8 qts 6.4 L
Coolant capacity	11.6 qts 11.0 L

Transmission

	2009 - ???? Utility tractor
2009 - ????
Utility tractor

2009 - ????
Utility tractor

Transmission options
32-speed power shuttle
12-speed power shuttle

Transmission — 32 forward and reverse power shuttle

Type	power shuttle
Gears	32 forward and reverse
Clutch	wet discs
Oil capacity	79.2 qts 75.0 L

Transmission — 12 forward and reverse power shuttle

Type	power shuttle
Gears	12 forward and reverse
Oil capacity	79.2 qts 75.0 L

Dimensions

	2009 - ???? Utility tractor
2009 - ????
Utility tractor

2009 - ????
Utility tractor

TYM T903 Tires
Ag front	13.6-24
Ag rear	16.9-34

Dimensions
Wheelbase	90.55 inches 229 cm
Length	162 inches 411 cm
Width	87.9 inches 223 cm
Height (cab)	107 inches 271 cm
Weight	8124 lbs 3685 kg
T903S Weight	8069 lbs 3660 kg
Ground clearance	15.1 inches 38 cm

Attachments

	2009 - ???? Utility tractor
2009 - ????
Utility tractor

2009 - ????
Utility tractor

Photos

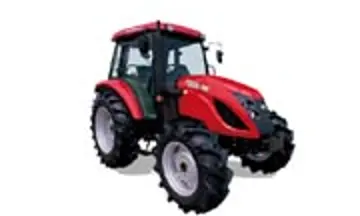

TYM T903 tractor photo
