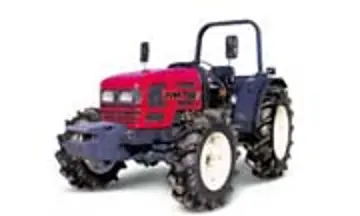

TYM T550
The TYM T550 is a tractor produced by Tym. It is equipped with a 179 ci 2.9 L engine. The listed engine power is Diesel (listed): 55 hp / 41.0 kW. Transmission: 16 forward and reverse. Operating weight: 5379 to 5600 pounds.
Engine Power
Diesel (listed): 55 hp / 41.0 kW
Fuel & Capacities
17.2 gal
65.1 L
Transmission
16 forward and reverse
Operating Weight
5379 to 5600 pounds
Overview
![]() | 2004 - 2006
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
Built in South Korea | |
TYM T550 Engine | |
|---|---|
John Deere 2.9L 3-cyl diesel | |
Fuel tank | 17.2 gal
65.1 L |
Engine details ... | |
TYM T550 Transmission | |
|---|---|
16-speed sync shuttle | |
Transmission details ... |
TYM T550 Power | |
|---|---|
Engine | 55 hp
41.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Steering | power |
Wet disc brakes | |
Two-post ROPS. Cab optional. | |
Hydraulics | |
|---|---|
Pump flow | 16 gpm
60.6 lpm |
Tractor hitch | |
|---|---|
Control | position and draft control |
Rear lift | 4250 lbs
1927 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 577/787 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 83 inches
210 cm |
Weight | 5379 to 5600 pounds |
Front tire | 11.2-20 |
Rear tire | 14.9-28 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Millennium 2000 published by ITC International |
Engine
Engine Detail — 179 ci / 2.9 L Diesel
Manufacturer | John Deere CD3029D |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 179 ci
2.9 L |
Bore/Stroke | 4.19x4.33 inches
106 x 110 mm |
Power | 55 hp
41.0 kW |
Fuel system | direct injection |
Compression | 17.8:1 |
Rated RPM | 2400 |
Firing order | 1-2-3 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 9.5 qts
9.0 L |
Transmission

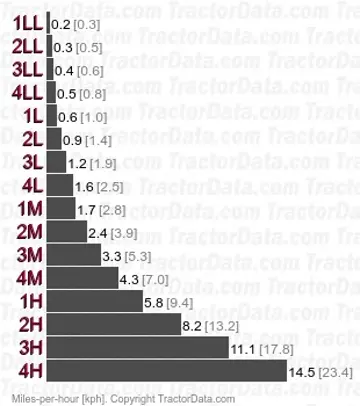

Transmission — 16 forward and reverse sync shuttle
Type | sync shuttle |
Gears | 16 forward and reverse |
Clutch | dry disc |
Four synchronized gears (1-4) in four ranges with synchronized shuttle shift. Tractor must be stopped to shift range. | |
![]() | |
Dimensions
TYM T550 Tires | |
|---|---|
Ag front | 11.2-20 |
Ag rear | 14.9-28 |
Dimensions | |
|---|---|
Wheelbase | 83 inches
210 cm |
Length | 159 inches
403 cm |
Width | 72 inches
182 cm |
Height (ROPS) | 101 inches
256 cm |
Height (cab) | 98 inches
248 cm |
ROPS Weight | 5379 lbs
2439 kg |
Cab Weight | 5600 lbs
2540 kg |
Ground clearance | 13 inches
33 cm |
Front tread | 58 inches
147 cm |
Rear tread | 56 inches
142 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T550 based on its 55 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T550.
Estimated Continuous Field Runtime: 6 hrs
Approximately 6 hours of continuous field operation at ~75% rated power on a full tank (17.2 gal / 65.1 L).
Estimated 75% Load Fuel Burn~2.9 gal/hr (10.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T550 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T550.
Converted Equivalents:
Horsepower (HP)55 hp
Kilowatts (kW)41 kW
Metric Horsepower (PS / CV)55.8 PS
Direct Competitor Comparison
Compare TYM T550 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM T550
Engine Power:Diesel (listed): 55 hp / 41.0 kW
★ Baseline Reference
