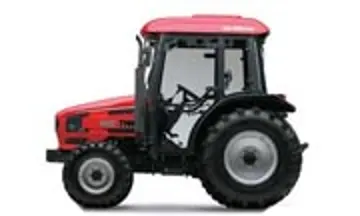

TYM T451
The TYM T451 is a tractor produced by Tym. It is equipped with a 134.1 ci 2.2 L engine. The listed engine power is Diesel (listed): 45 hp / 33.6 kW. Transmission: sync shuttle. Operating weight: 4,369 lbs 1981 kg.
Engine Power
Diesel (listed): 45 hp / 33.6 kW
Fuel & Capacities
11.5 gal
43.5 L
Transmission
sync shuttle
Operating Weight
4,369 lbs
1981 kg
Overview
![]() | Compact Utility tractor | Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
The TYM 451 is, basically, the TYM 450 with a cab | |
TYM T451 Engine | |
|---|---|
Kubota 2.2L 4-cyl diesel | |
Engine details ... |
TYM T451 Transmission | |
|---|---|
16-speed | |
Transmission details ... |
TYM T451 Power | |
|---|---|
Engine | 45 hp
33.6 kW |
PTO (claimed) | 38 hp
28.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes |
Capacity | |
|---|---|
Fuel | 11.5 gal
43.5 L |
Hydraulic system | 9 gal
34.1 L |
Hydraulics | |
|---|---|
Capacity | 9 gal
34.1 L |
Rear valves | 2 |
Front valves | 1 |
Pump flow | 7.8 gpm
29.5 lpm |
Total flow | 10.94 gpm
41.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | I/II |
Rear lift (at ends) | 2,865 lbs
1299 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/750/1000/1400 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71 inches
180 cm |
Weight | 4,369 lbs
1981 kg |
Front tire | 9.5-16 |
Rear tire | 13.6-24 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Charging amps | 50 |
Engine
Engine Detail — 134.1 ci / 2.2 L Diesel
Manufacturer | Kubota V2203 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 134.1 ci
2.2 L |
Power | 45 hp
33.6 kW |
Rated RPM | 2600 |
Starter type | electric |
Oil capacity | 8.4 qts
7.9 L |
Coolant capacity | 9.5 qts
9.0 L |
Transmission
Transmission — sync shuttle
Transmission | sync shuttle |
Gears | 16 forward and reverse |
Dimensions
TYM T451 Tires | |
|---|---|
Ag front | 9.5-16 |
Ag rear | 13.6-24 |
Dimensions | |
|---|---|
Wheelbase | 71 inches
180 cm |
Length | 146 inches
370 cm |
Width | 63.8 inches
162 cm |
Height | 95 inches
241 cm |
Weight | 4,369 lbs
1981 kg |
Ground clearance | 14.2 inches
36 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T451 based on its 45 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T451.
Estimated Continuous Field Runtime: 4.9 hrs
Approximately 4.9 hours of continuous field operation at ~75% rated power on a full tank (11.5 gal / 43.5 L).
Estimated 75% Load Fuel Burn~2.3 gal/hr (8.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T451 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T451.
Converted Equivalents:
Horsepower (HP)45 hp
Kilowatts (kW)33.6 kW
Metric Horsepower (PS / CV)45.6 PS
Direct Competitor Comparison
Compare TYM T451 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM T451
Engine Power:Diesel (listed): 45 hp / 33.6 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 404
Engine Power:40.8
Production Years:1961 - 1968
