TYM T450

The TYM T450 is a tractor produced by Tym. It is equipped with a 134.1 ci 2.2 L engine. The listed engine power is Diesel (listed): 45 hp / 33.6 kW. Transmission: sync shuttle. Operating weight: 3960 lbs 1796 kg.

Overview

	Utility tractor	Utility tractor

Production
Manufacturer	TYM
Utility tractor

TYM T450 Engine
Kubota 2.2L 4-cyl diesel
Engine details ...

TYM T450 Transmission
16-speed
Transmission details ...

TYM T450 Power
Engine	45 hp 33.6 kW
PTO (claimed)	38 hp 28.3 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.

Capacity
Fuel	9.25 gal 35.0 L
Hydraulic system	9 gal 34.1 L

Hydraulics
Capacity	9 gal 34.1 L
Rear valves	2
Front valves	1
Pump flow	7.8 gpm 29.5 lpm
Total flow	10.94 gpm 41.4 lpm

Tractor hitch
Rear Type	II/I
Rear lift (at ends)	2865 lbs 1299 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	71 inches 180 cm
Weight	3960 lbs 1796 kg
Front tire	8-16
Rear tire	13.6-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	50
Battery volts	12

Engine

Engine Detail — 134.1 ci / 2.2 L Diesel

Manufacturer	Kubota V2203
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	134.1 ci 2.2 L
Bore/Stroke	3.43x3.64 inches 87 x 92 mm
Power	45 hp 33.6 kW
Rated RPM	2600
Starter	electric
Starter volts	12
Oil capacity	8.4 qts 7.9 L
Coolant capacity	9.5 qts 9.0 L

Transmission

Transmission — sync shuttle

Transmission	sync shuttle
Gears	16 forward and reverse

Dimensions

TYM T450 Tires
Ag front	8-16
Ag rear	13.6-24

Dimensions
Wheelbase	71 inches 180 cm
Length	127 inches 322 cm
Width	59.4 inches 150 cm
Height	95 inches 241 cm
Weight	3960 lbs 1796 kg
Ground clearance	13.2 inches 33 cm

Photos

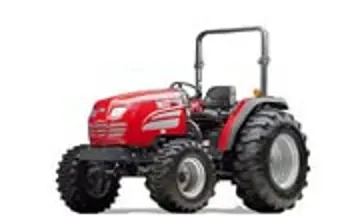

TYM T450
