TYM T463

The TYM T463 is a tractor produced by Tym. It is equipped with a 135.2 ci 2.2 L engine. The listed engine power is Diesel (listed): 46 hp / 34.3 kW. Transmission: 16 forward and reverse. Operating weight: 2560 lbs 1161 kg.

Engine Power
Diesel (listed): 46 hp / 34.3 kW
Fuel & Capacities
Diesel
Transmission
16 forward and reverse
Operating Weight
2560 lbs 1161 kg

Overview

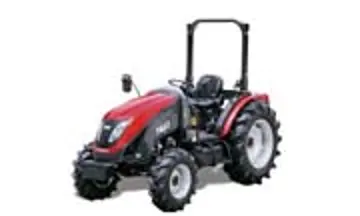

TYM T463 tractor photo
Compact Utility tractor
Compact Utility tractor
Production
Manufacturer
TYM
Compact Utility tractor
Built in South Korea
TYM T463 Engine
2.2L 4-cyl diesel
Engine details ...
TYM T463 Transmission
16-speed
Transmission details ...
TYM T463 Power
Engine
46 hp 34.3 kW
Mechanical
Four-wheel drive
Two-post ROPS.
Power Take-off (PTO)
Rear PTO Type
579/830/1120
Dimensions & Tires
Weight
2560 lbs 1161 kg
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 135.2 ci / 2.2 L Diesel

Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
135.2 ci 2.2 L
Power
46 hp 34.3 kW
Rated RPM
2800
Starter
electric
Starter volts
12

Transmission

Transmission — 16 forward and reverse

Gears
16 forward and reverse

Dimensions

TYM T463 Tires
Dimensions
Length
139 inches 353 cm
Width
63.4 inches 161 cm
Height (ROPS)
101.2 inches 257 cm
Weight
2560 lbs 1161 kg

Photos

TYM T463 tractor photo

TYM T463 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Tym T463 based on its 46 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T463.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym T463 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T463.

Converted Equivalents:

Horsepower (HP)46 hp
Kilowatts (kW)34.3 kW
Metric Horsepower (PS / CV)46.6 PS

Direct Competitor Comparison

Compare TYM T463 against same-era industry alternatives in the same horsepower class.

Current Model
Tym

TYM T463

Engine Power:Diesel (listed): 46 hp / 34.3 kW
★ Baseline Reference
DeereMarket Competitor

Deere 1445F

Engine Power:41.4
Production Years:1987 - 1990
KubotaMarket Competitor

Kubota GL417

Engine Power:41.4
Production Years:1996 - 2001
Massey FergusonMarket Competitor

Massey Ferguson 1742

Engine Power:41.6
Production Years:2013 - 2018
Deutz-FahrMarket Competitor

Deutz-Fahr Agrokid 45

Engine Power:41.6
Production Years:1997 - 2002
