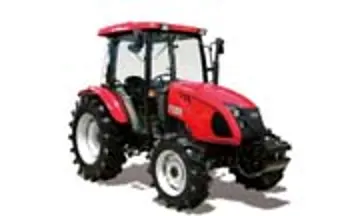

TYM T553
The TYM T553 is a tractor produced by Tym. It is equipped with a 135.4 ci 2.2 L engine. The listed engine power is Diesel (listed): 55 hp / 41.0 kW. Transmission: 16 forward and reverse.
Engine Power
Diesel (listed): 55 hp / 41.0 kW
Fuel & Capacities
18.5 gal
70.0 L
Transmission
16 forward and reverse
Overview
![]() | 2006 - 2015
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | TYM |
Utility tractor | |
Built in South Korea | |
TYM T553 Engine | |
|---|---|
Caterpillar 2.2L 4-cyl diesel | |
Fuel tank | 18.5 gal
70.0 L |
Engine details ... | |
TYM T553 Transmission | |
|---|---|
16-speed sync shuttle | |
Transmission details ... |
TYM T553 Power | |
|---|---|
Engine | 55 hp
41.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 561/760 |
Dimensions & Tires | |
|---|---|
Wheelbase | 83.5 inches
212 cm |
Front tire | 11.2-20 |
Rear tire | 14.9-30 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 135.4 ci / 2.2 L Diesel
Manufacturer | Caterpillar |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 135.4 ci
2.2 L |
Bore/Stroke | 3.31x3.94 inches
84 x 100 mm |
Power | 55 hp
41.0 kW |
Compression | 23.3:1 |
Rated RPM | 2600 |
Firing order | 1-3-4-2 |
Starter | electric |
Starter volts | 12 |
Transmission

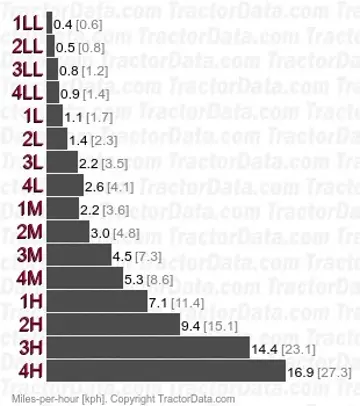

Transmission — 16 forward and reverse sync shuttle
Type | sync shuttle |
Gears | 16 forward and reverse |
Oil capacity | 36.8 qts
34.8 L |
Four synchronized gears (1-4) in four ranges with synchronized shuttle shift. Tractor must be stopped to shift range. | |
![]() | |
Dimensions
TYM T553 Tires | |
|---|---|
Standard tires (ag) | Front: 11.2-20. Rear: 14.9-30 |
Dimensions | |
|---|---|
Wheelbase | 83.5 inches
212 cm |
Length | 148.8 inches
377 cm |
Width | 72 inches
182 cm |
Height (cab) | 98.4 inches
249 cm |
Ground clearance | 14.4 inches
36 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T553 based on its 55 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T553.
Estimated Continuous Field Runtime: 6.5 hrs
Approximately 6.5 hours of continuous field operation at ~75% rated power on a full tank (18.5 gal / 70 L).
Estimated 75% Load Fuel Burn~2.9 gal/hr (10.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T553 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T553.
Converted Equivalents:
Horsepower (HP)55 hp
Kilowatts (kW)41 kW
Metric Horsepower (PS / CV)55.8 PS
Direct Competitor Comparison
Compare TYM T553 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM T553
Engine Power:Diesel (listed): 55 hp / 41.0 kW
★ Baseline Reference
